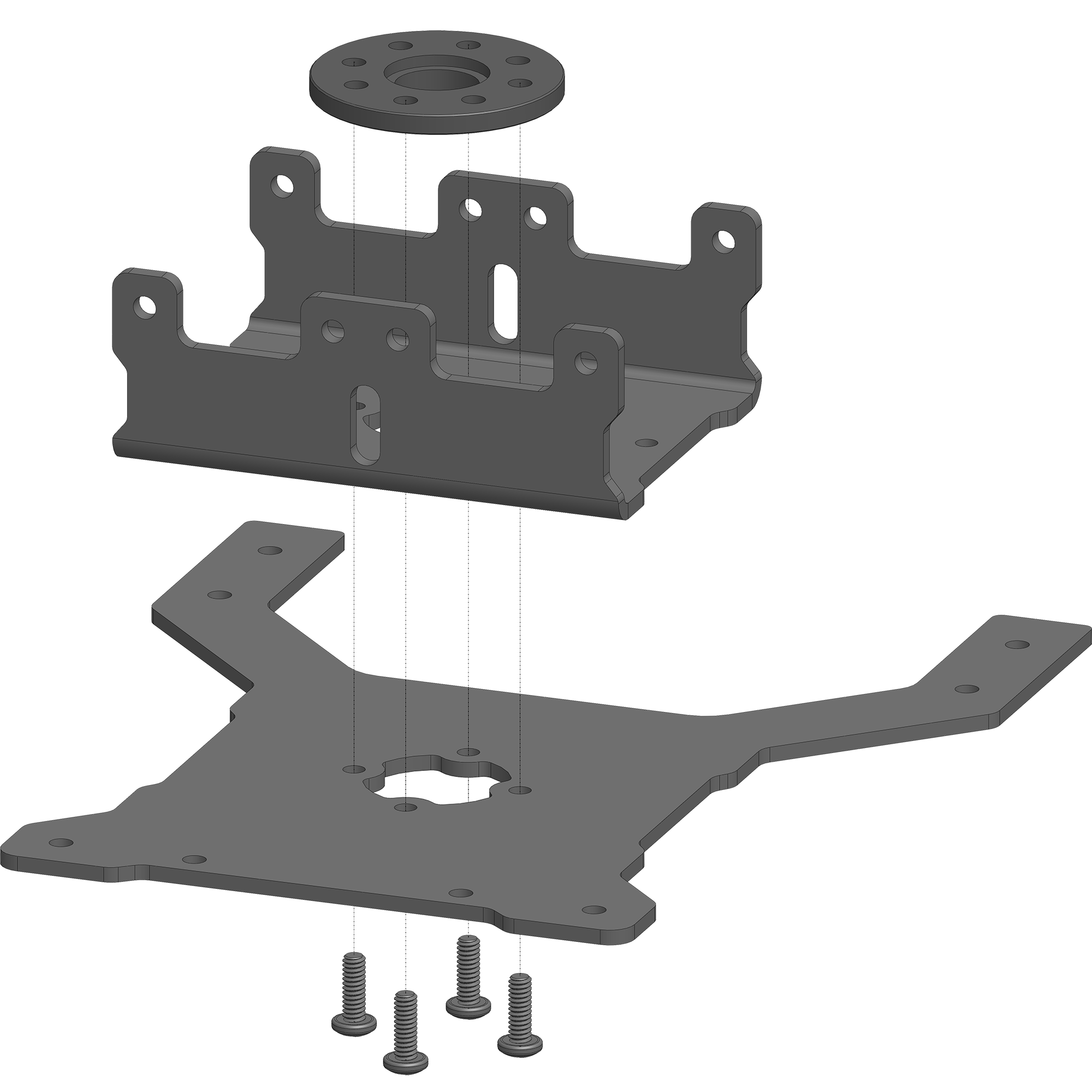

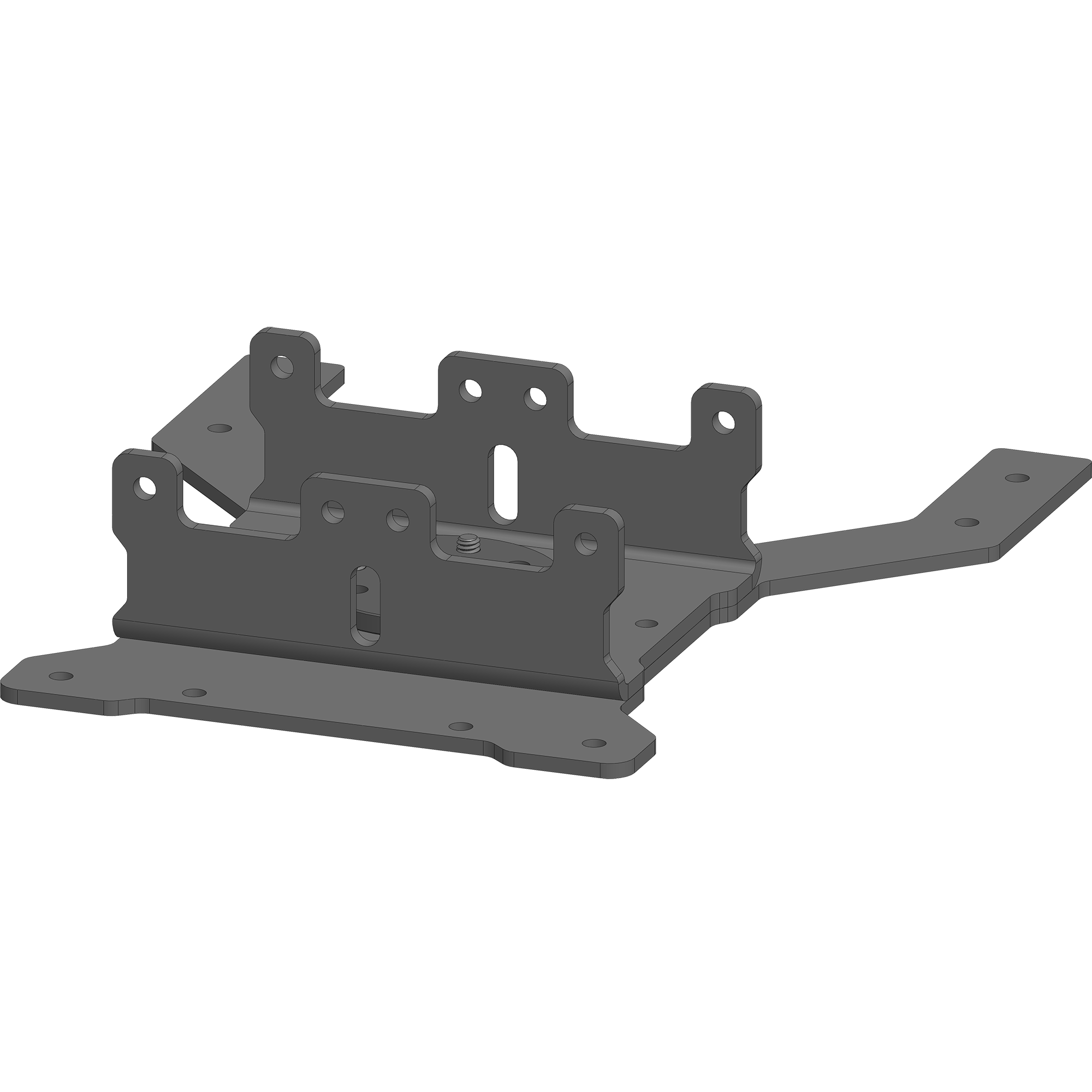

Frame - Assembly A
Step 1/9

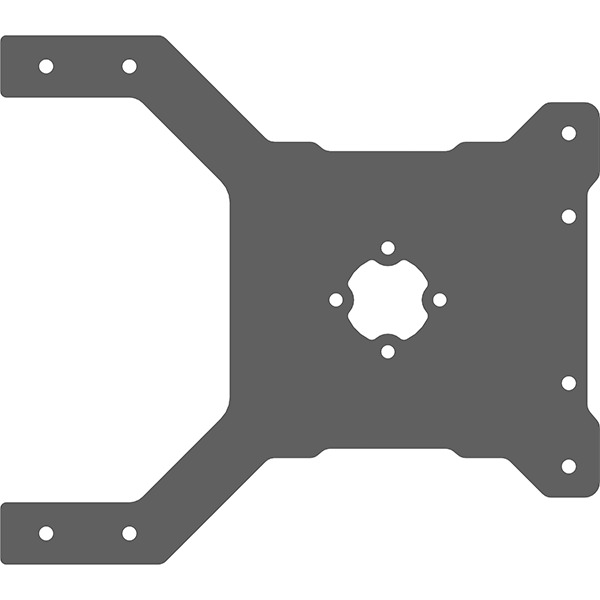

1x mechDOG-F-01
Frame Plate #1
1x ASB-30
LSS Double Wide
1x LSS-IH
LSS Idler Horn
4x PHS-02
2-56 x 1/4"

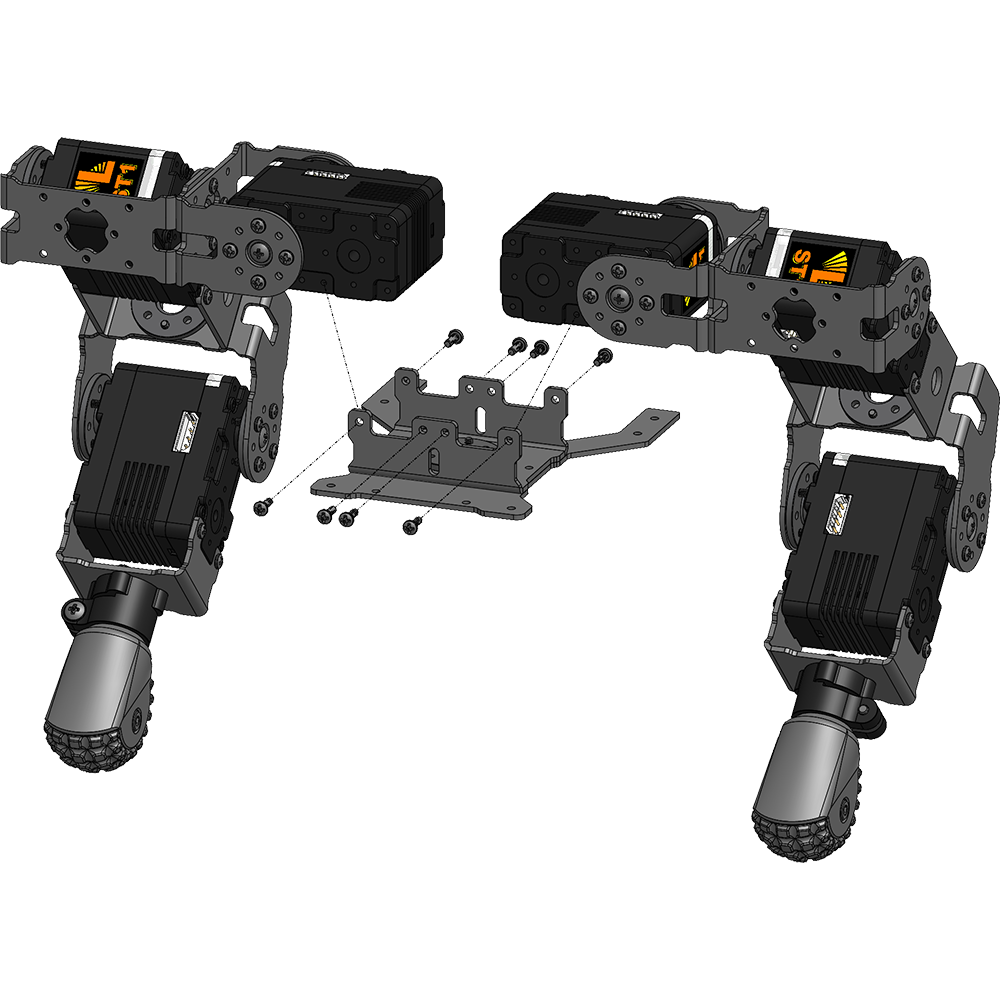

Frame - Assembly B
Step 2/9
Leg
Right Front
Leg
Left Front
Frame
Assembly A
8x PHS-02
2-56 x 1/4"

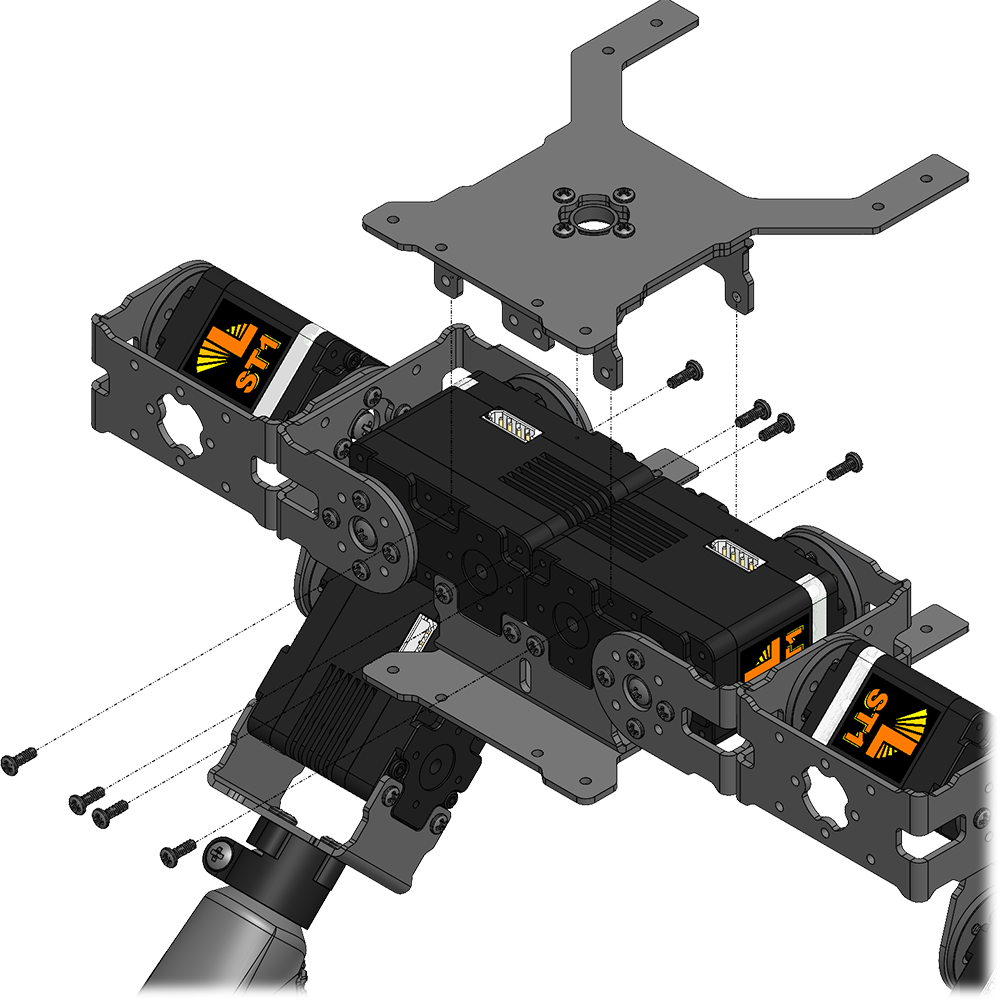

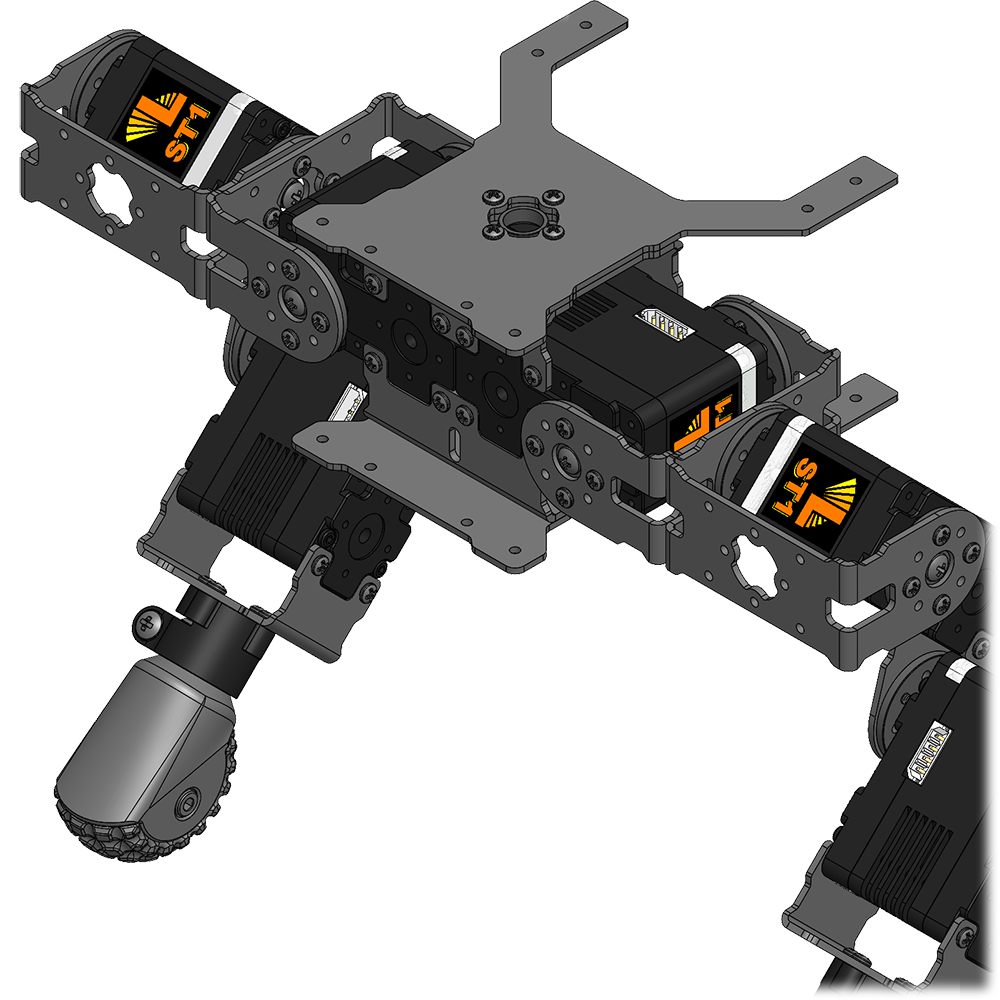

Frame - Assembly C
Step 3/9
Frame
Assembly B
Frame
Assembly A
8x PHS-02
2-56 x 1/4"

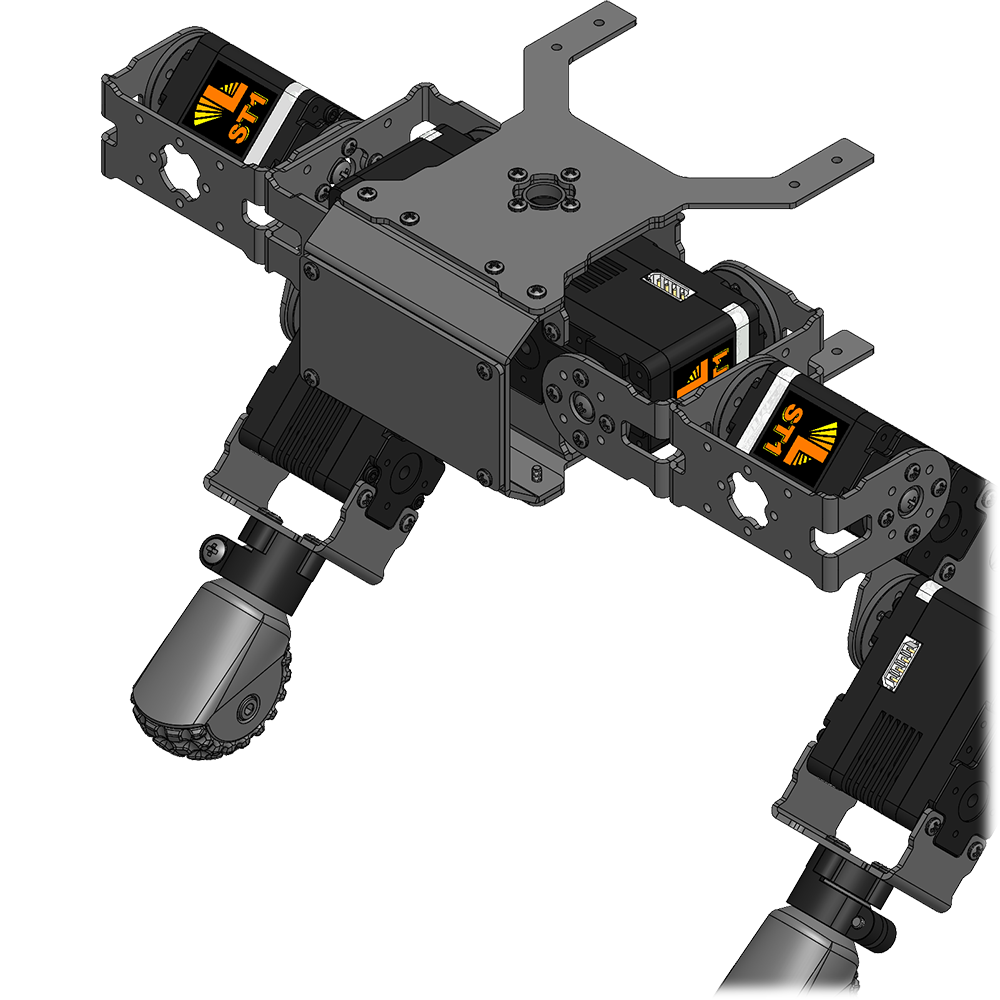

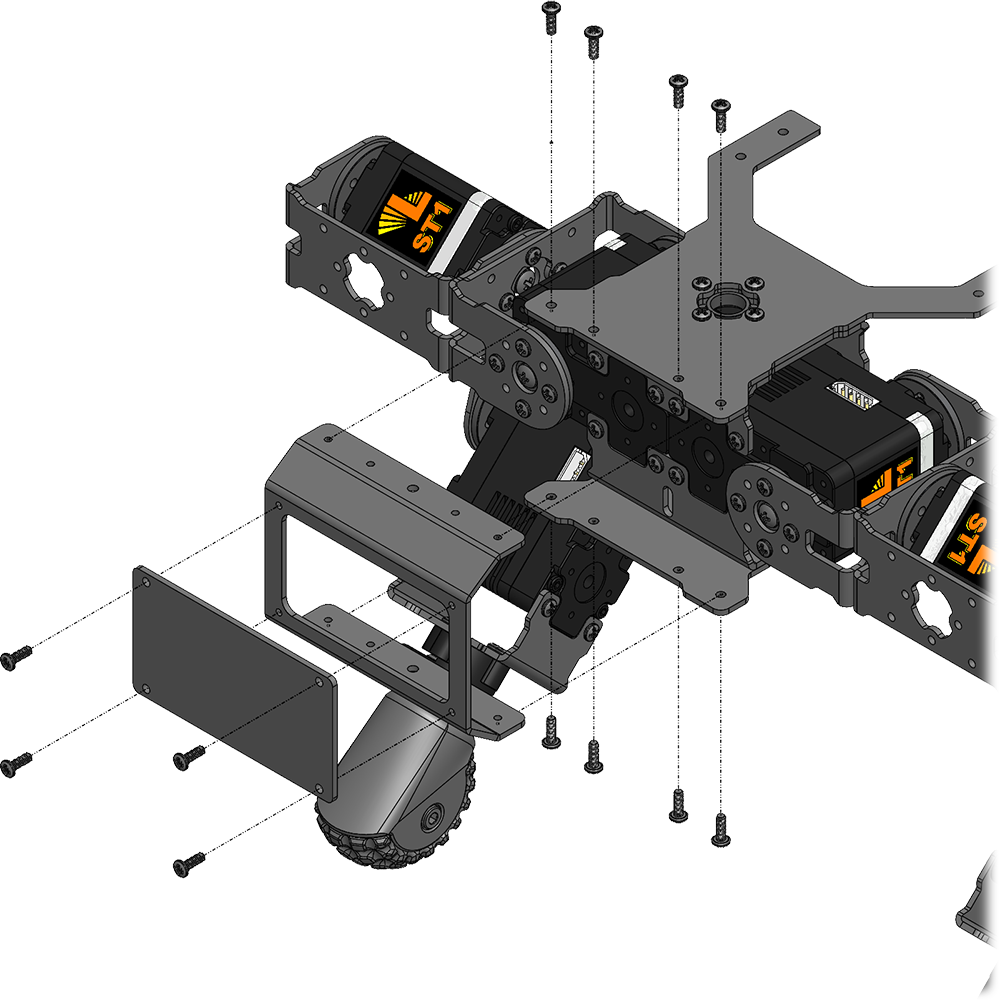

Frame - Assembly D
Step 4/9
Frame
Assembly C
1x GPAB-01
Aluminum Bracket
1x mechDOG-F-03
Cover Plate
12x PHS-02
2-56 x 1/4"




Different Plates are Available
Optional
1x mechDOG-F-04
SES Plate
1x mechDOG-F-05
LSS Plate
1x mechDOG-F-06
PING Plate
1x mechDOG-F-07
Sharp Plate

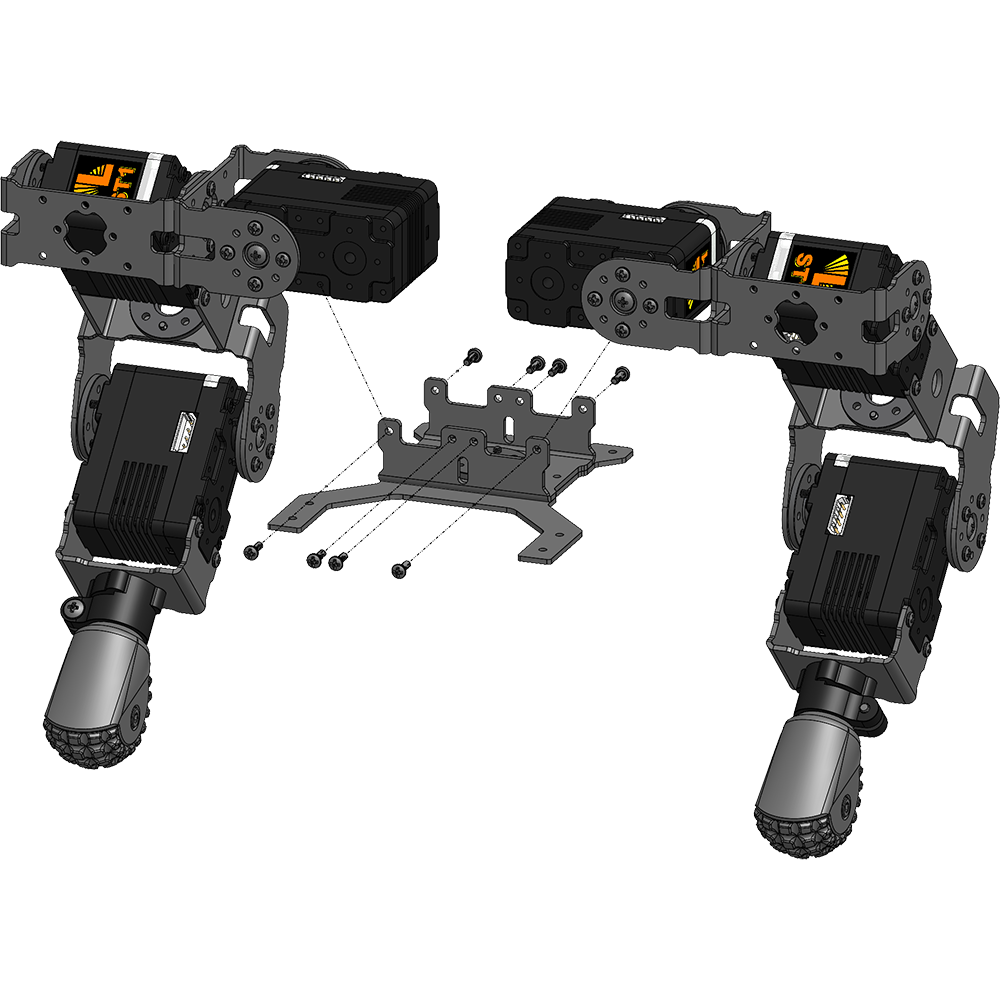

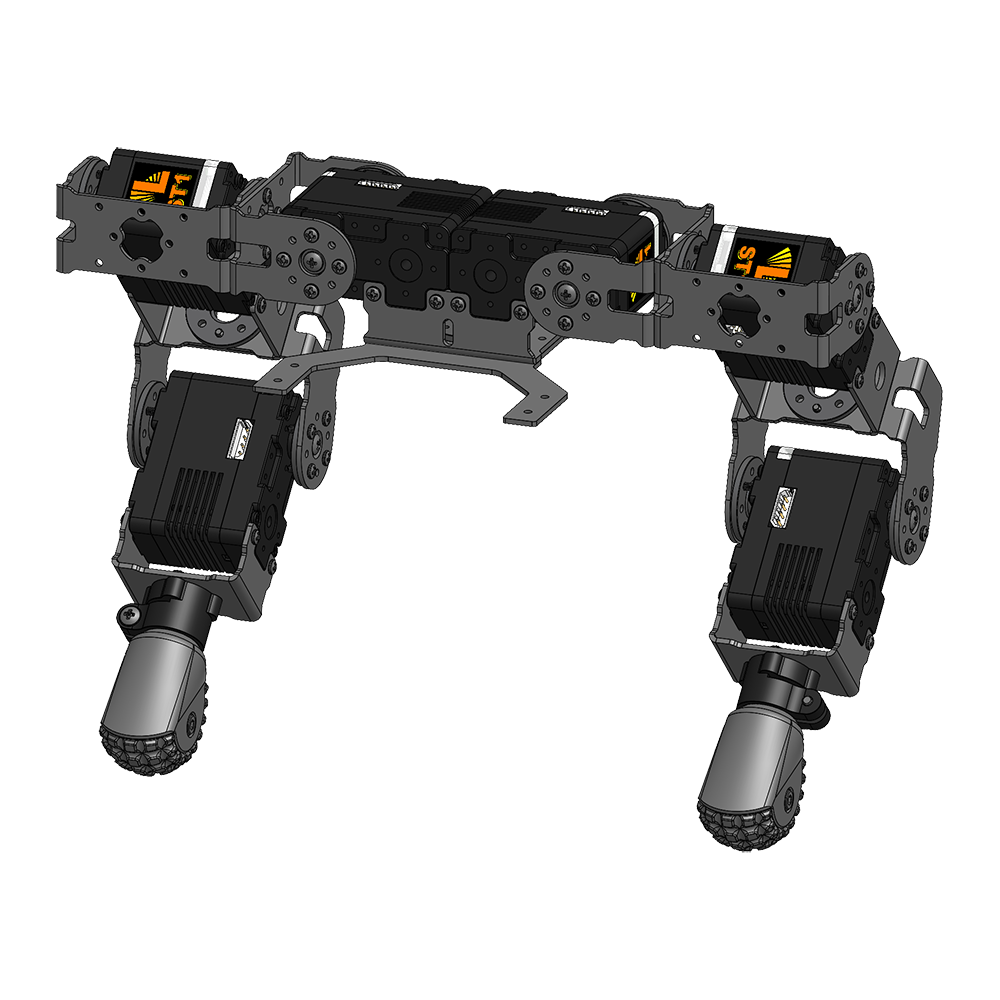

Frame - Assembly E
Step 5/9
Leg
Right Rear
Leg
Left Rear
Frame
Assembly A
8x PHS-02
2-56 x 1/4"

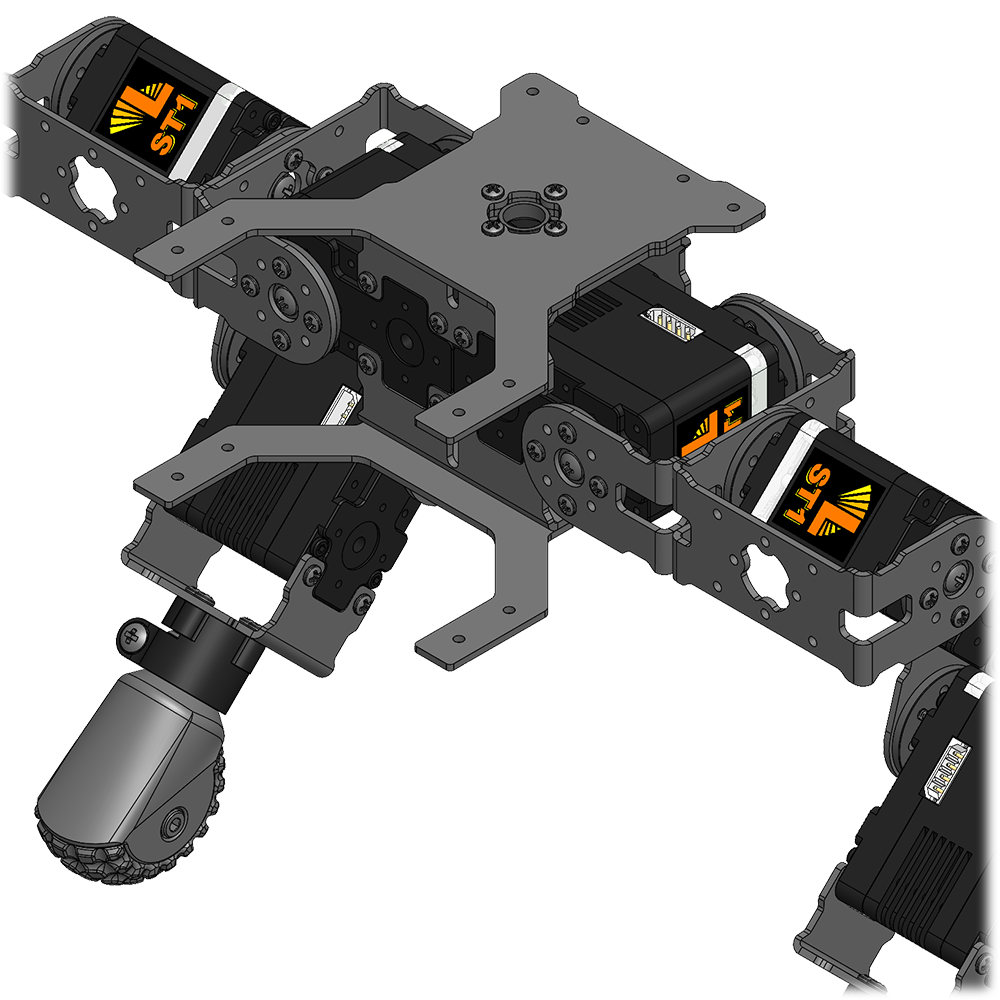

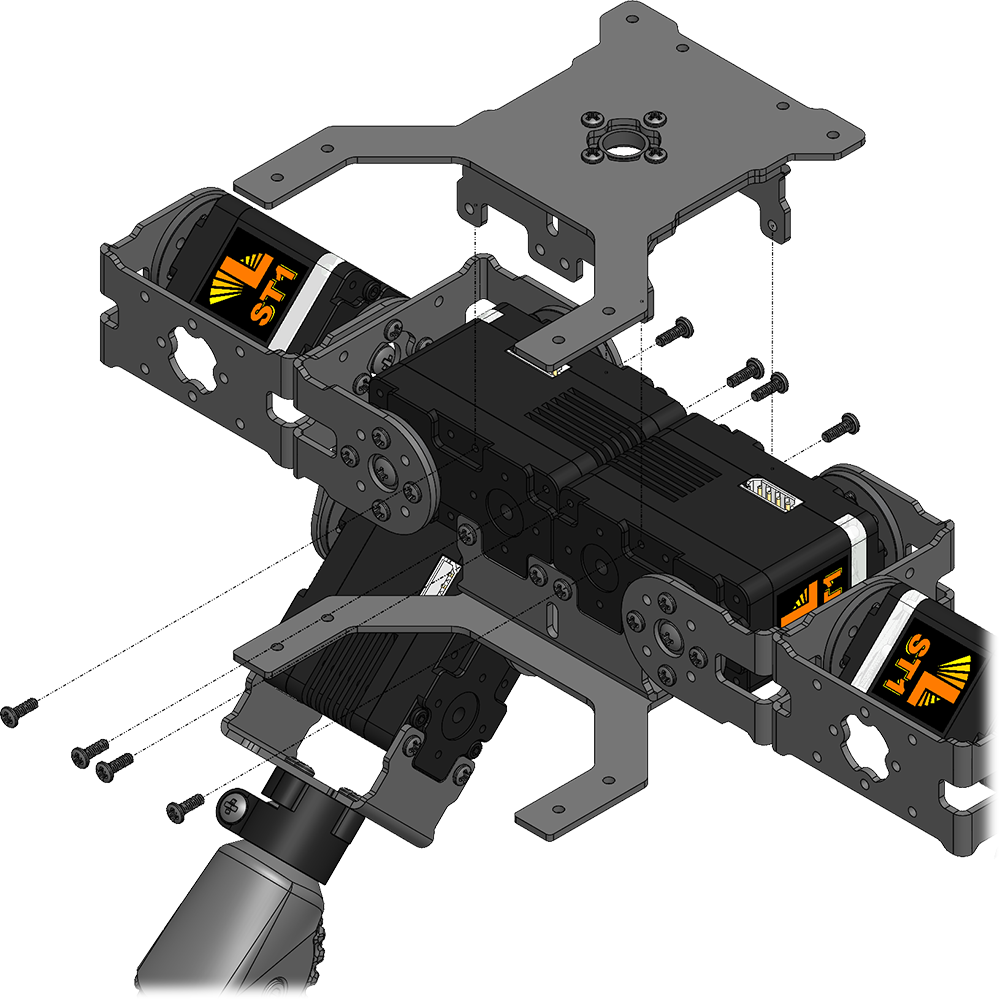

Frame - Assembly F
Step 6/9
Frame
Assembly E
Frame
Assembly A
8x PHS-02
2-56 x 1/4"

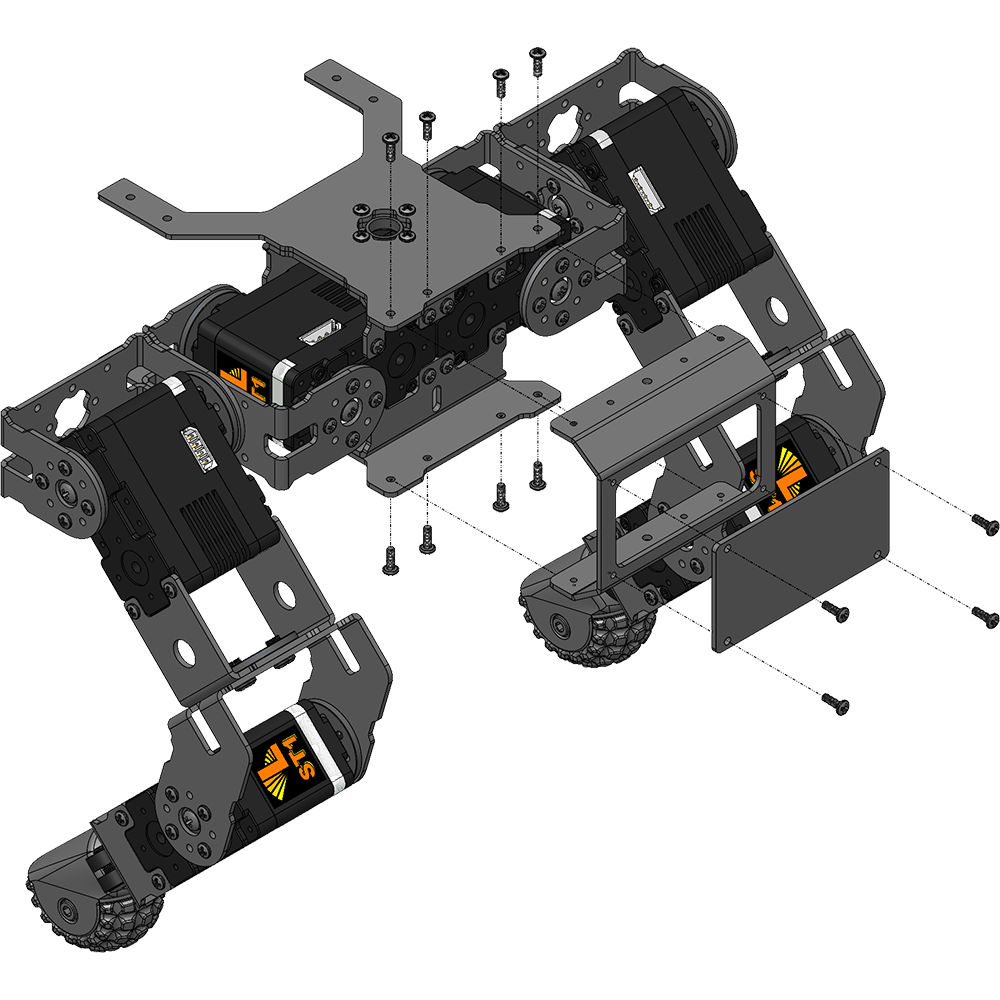

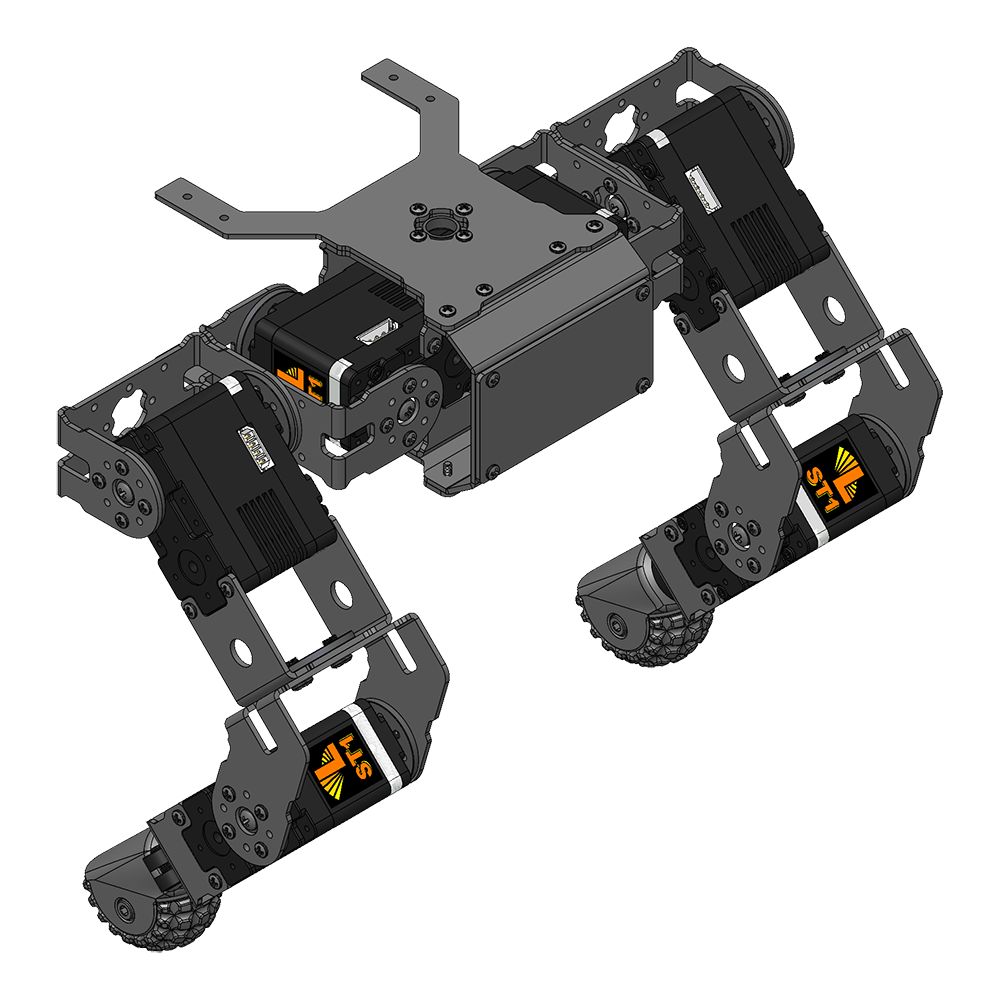

Frame - Assembly G
Step 7/9
Frame
Assembly F
1x GPAB-01
Aluminum Bracket
1x mechDOG-F-03
Cover Plate
12x PHS-02
2-56 x 1/4"

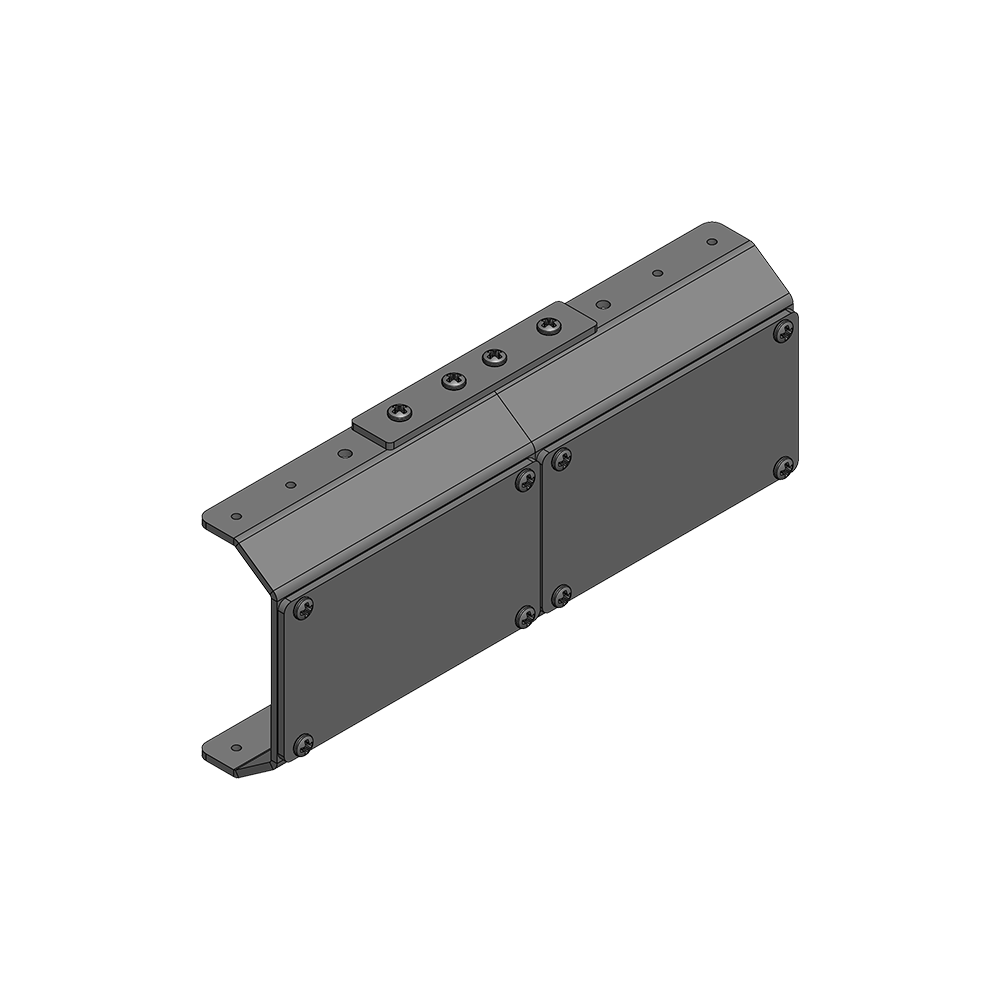

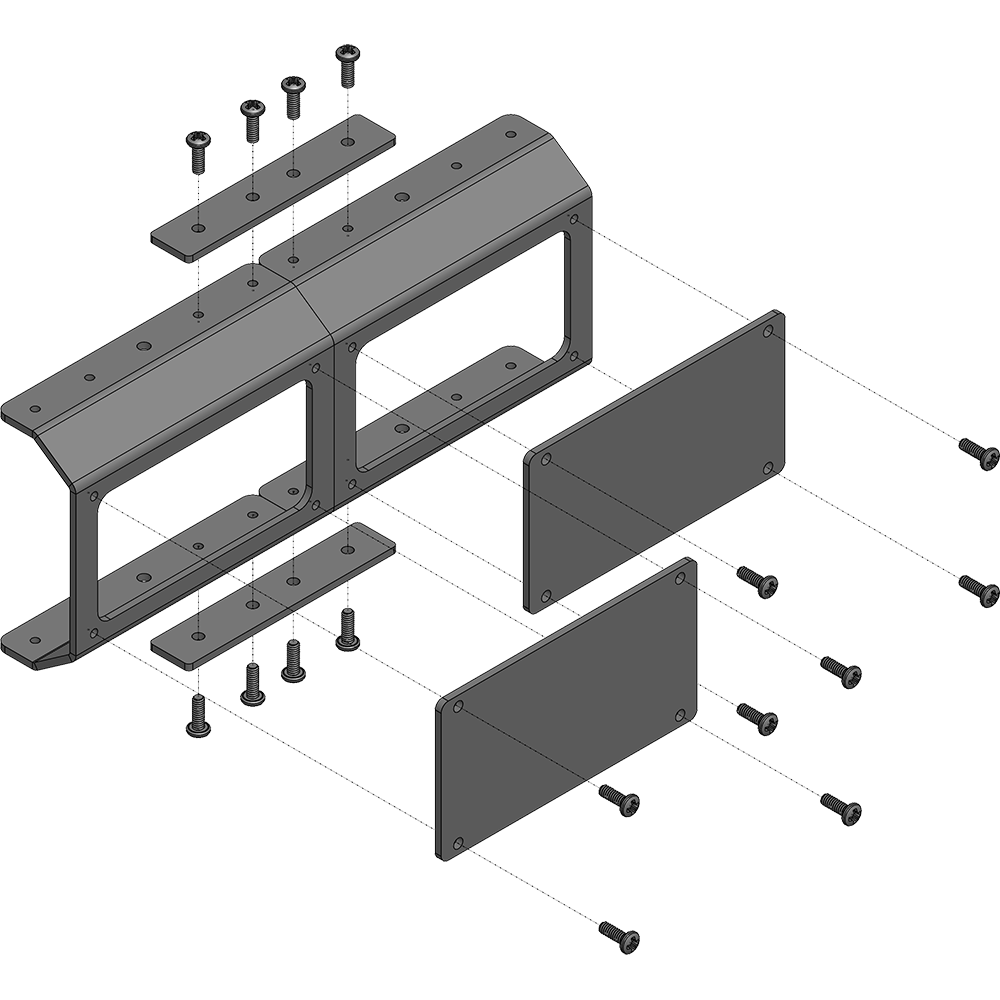

Frame - Assembly H
Step 8/9
2x GPAB-01
Aluminum Bracket
2x mechDOG-F-02
Frame Plate #2
2x mechDOG-F-03
Cover Plate
16x PHS-02
2-56 x 1/4"

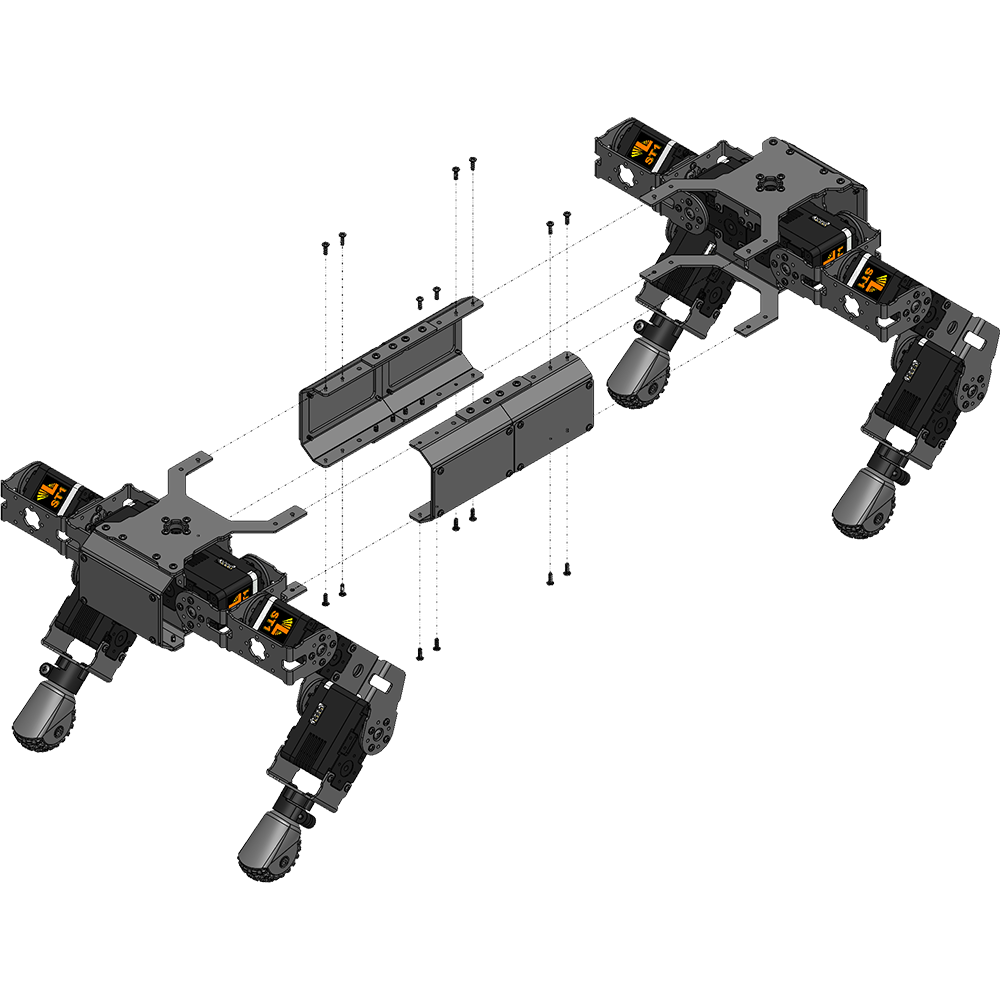

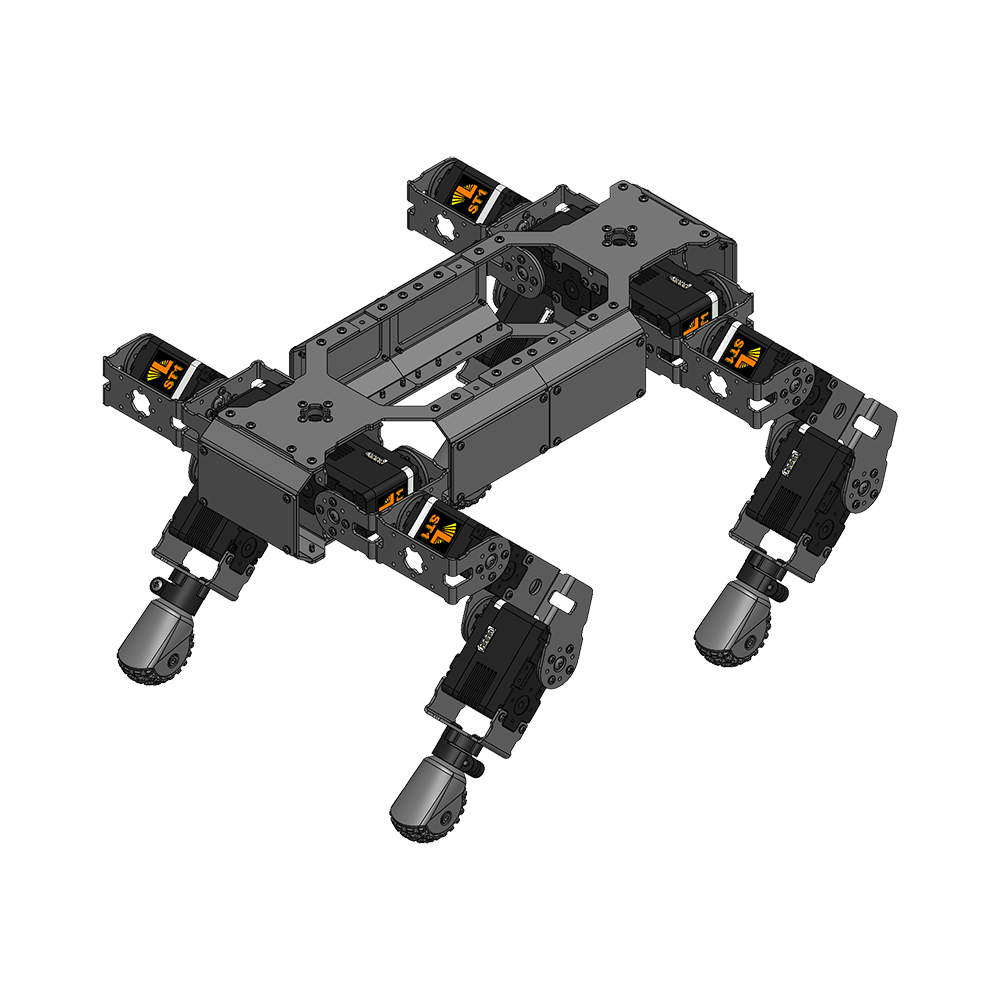

Frame - Assembly I
Step 9/9
Frame
Assembly D
Frame
Assembly G
Frame
Assembly H
16x PHS-02
2-56 x 1/4"
