SES V2 - mechDOG Right Front Leg

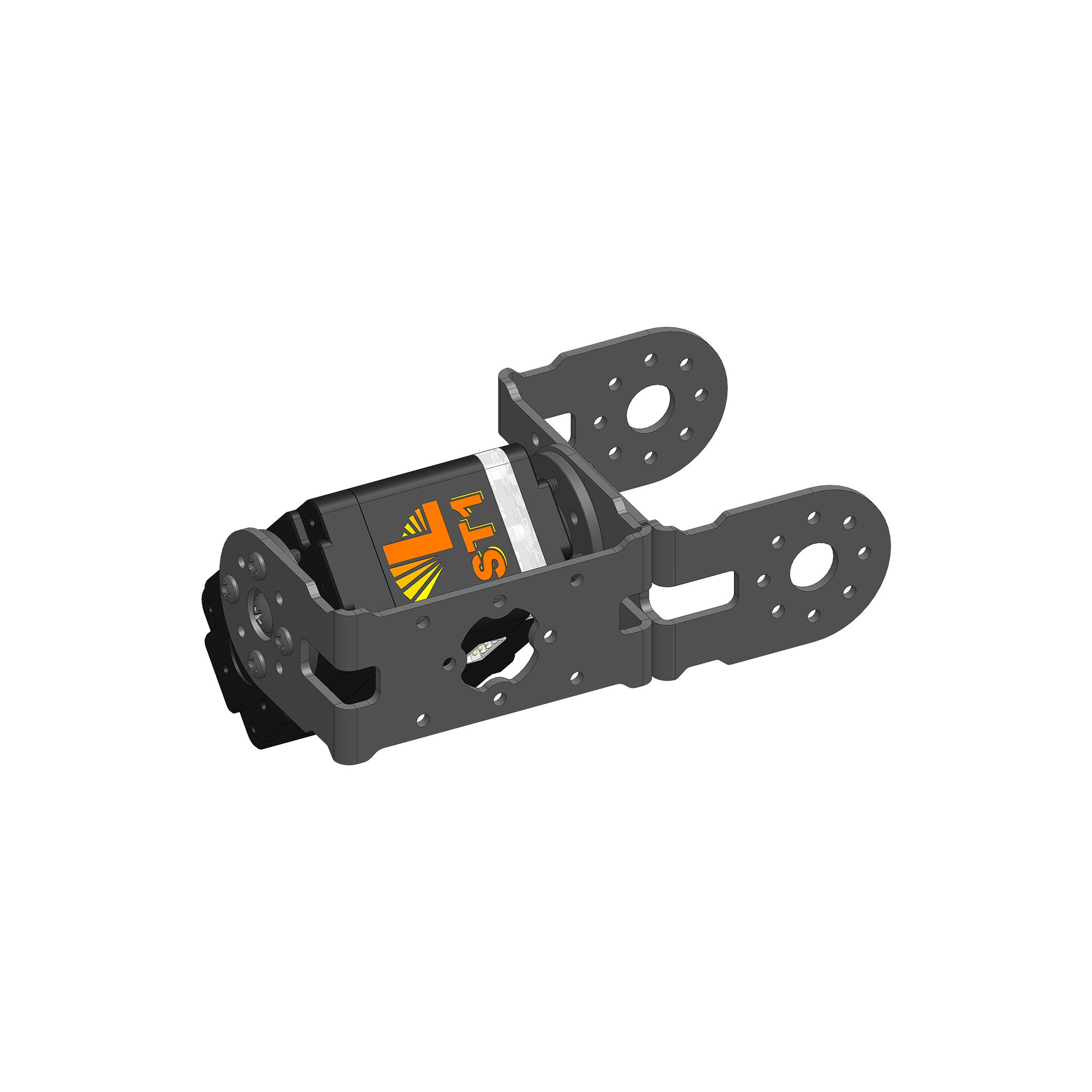

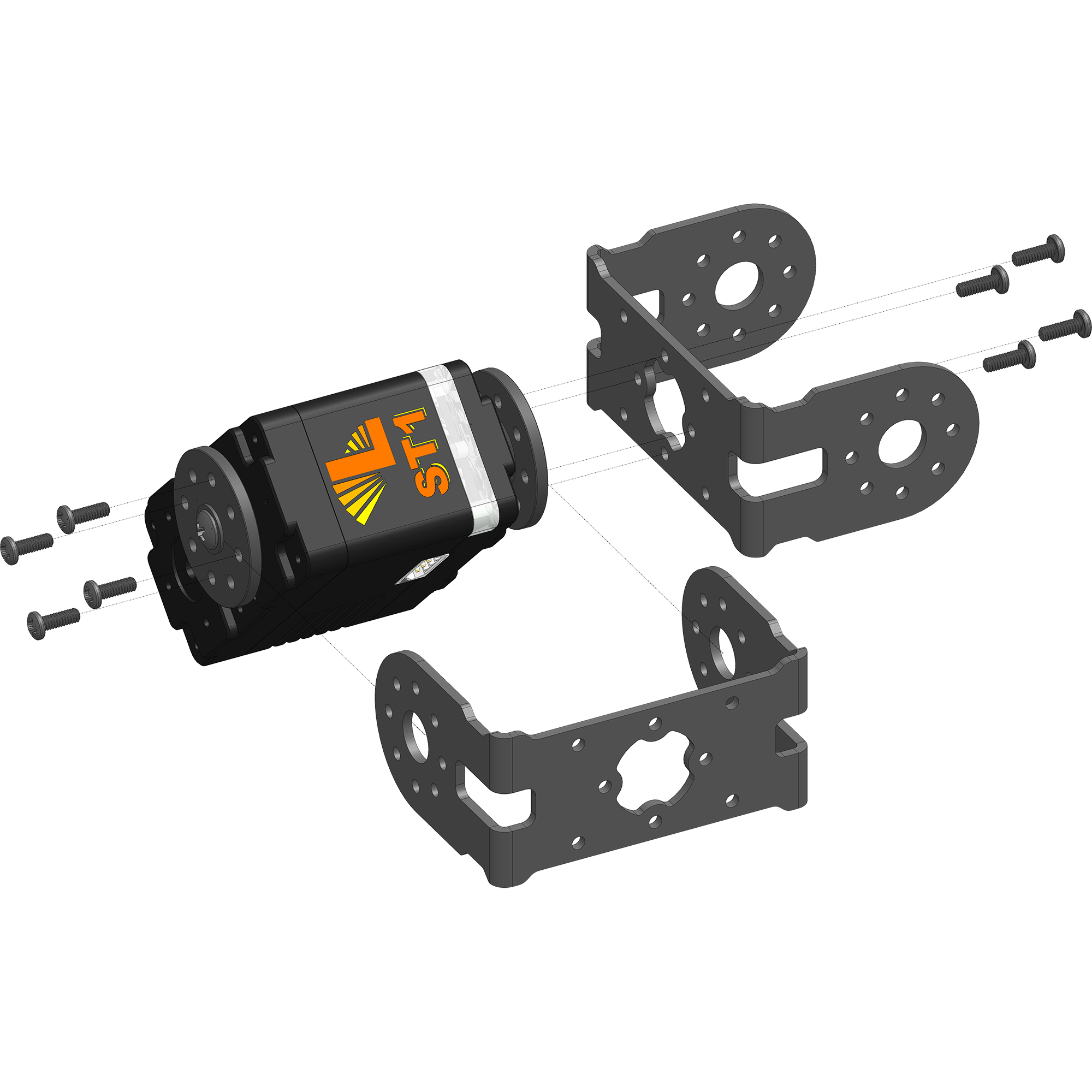

Right Front Leg - Assembly A

Step 1/5

1x LSS-ST1

LSS-ST1 ID-22

2x - ASB-39

Short C V2

8x PHS-02

2-56 x 1/4"

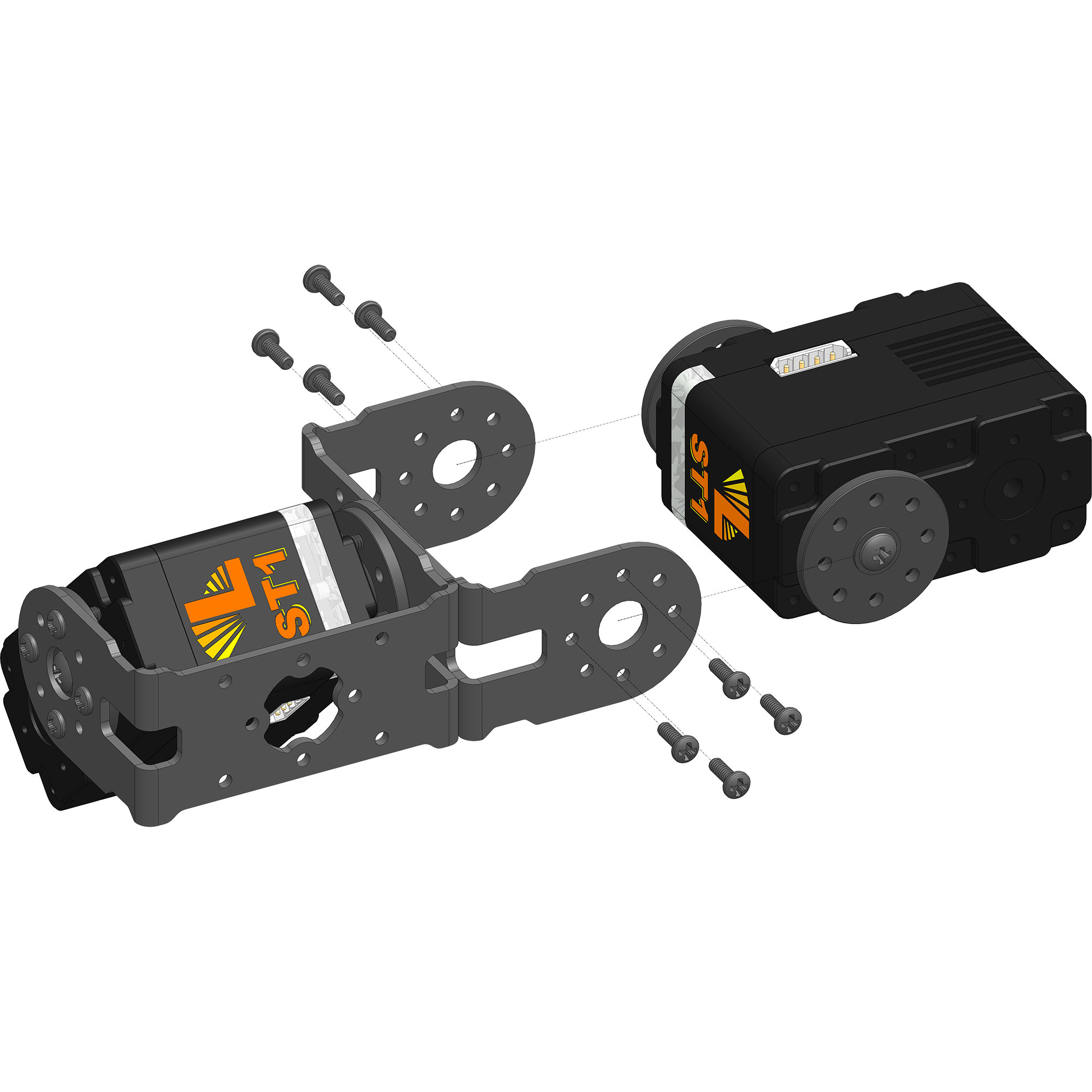

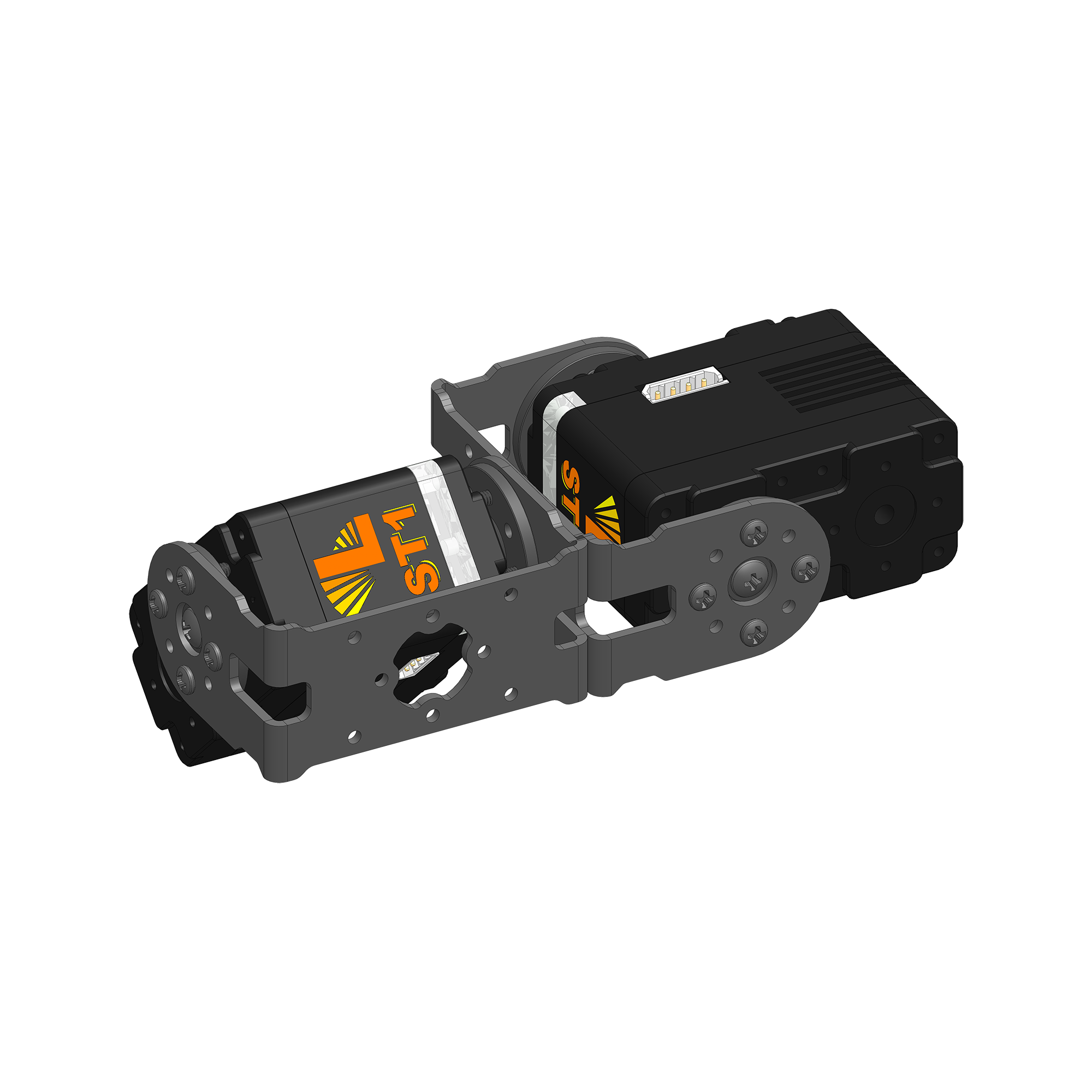

Right Front Leg - Assembly B

Step 2/5

1x LSS-ST1

LSS-ST1 ID-21

8x PHS-02

2-56 x 1/4"

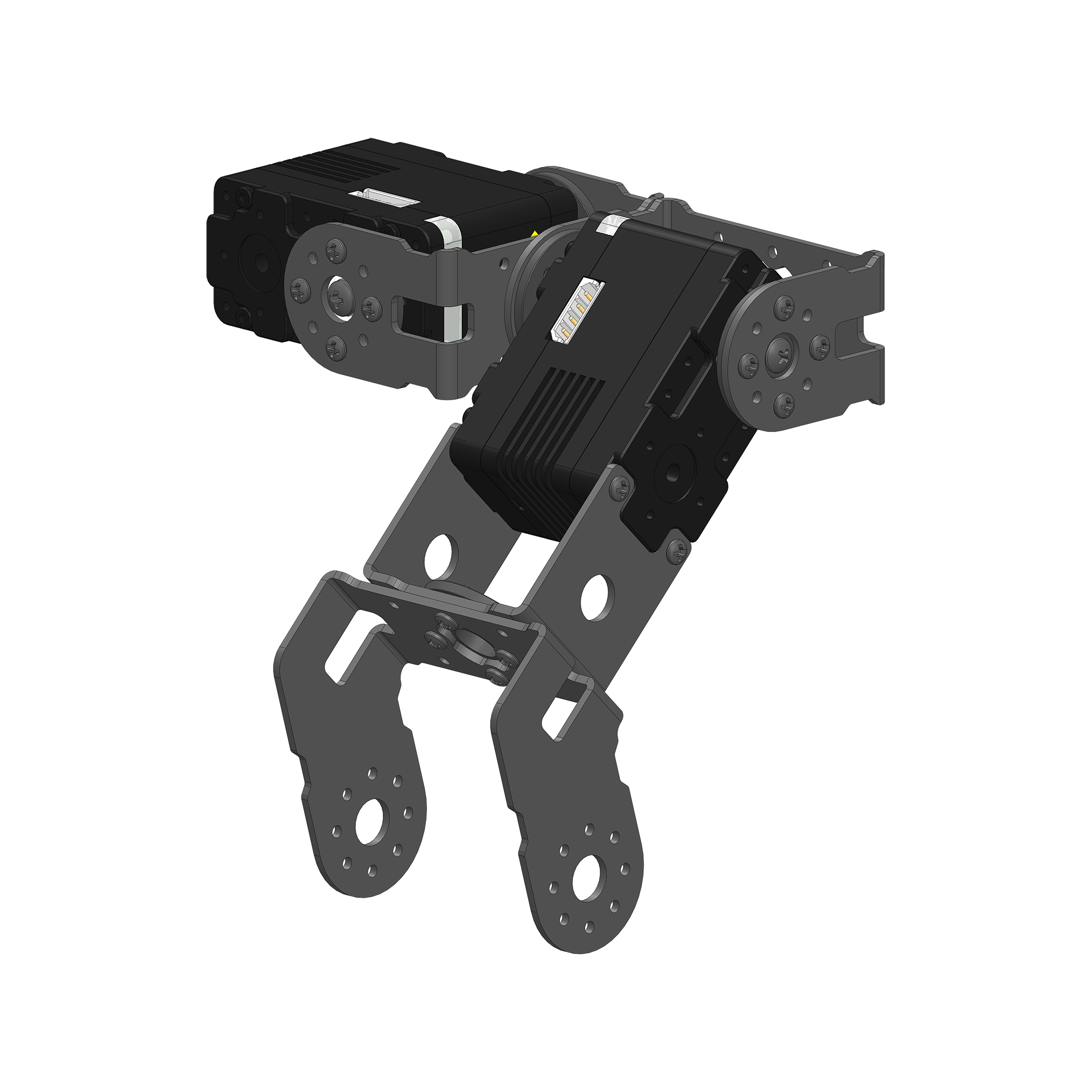

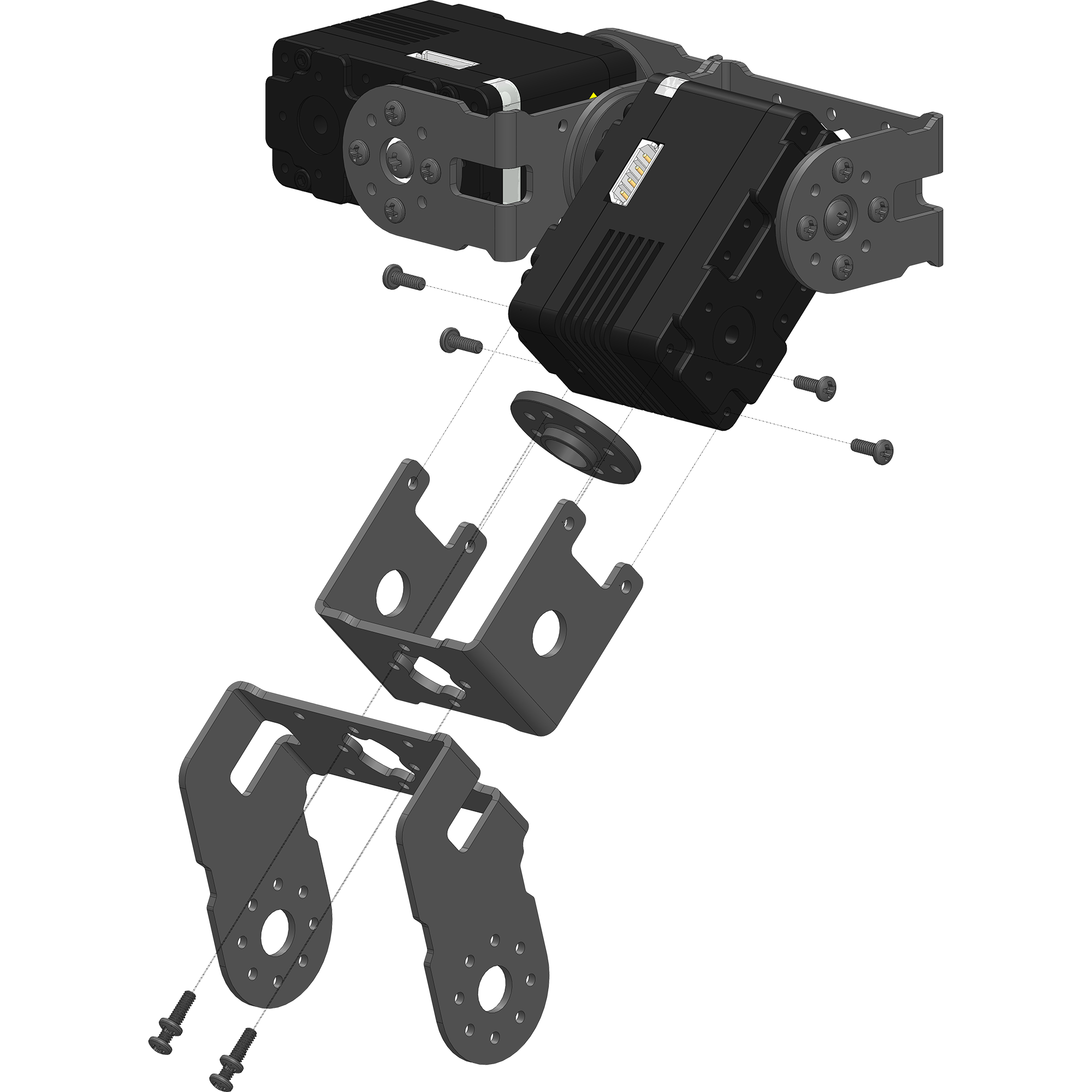

Right Front Leg - Assembly C

Step 3/5

1x LSS-IH

LSS Idler Horn

1x - ASB-33

LSS Gearbox

1x - ASB-37

Angled C V2

8x PHS-02

2-56 x 1/4"

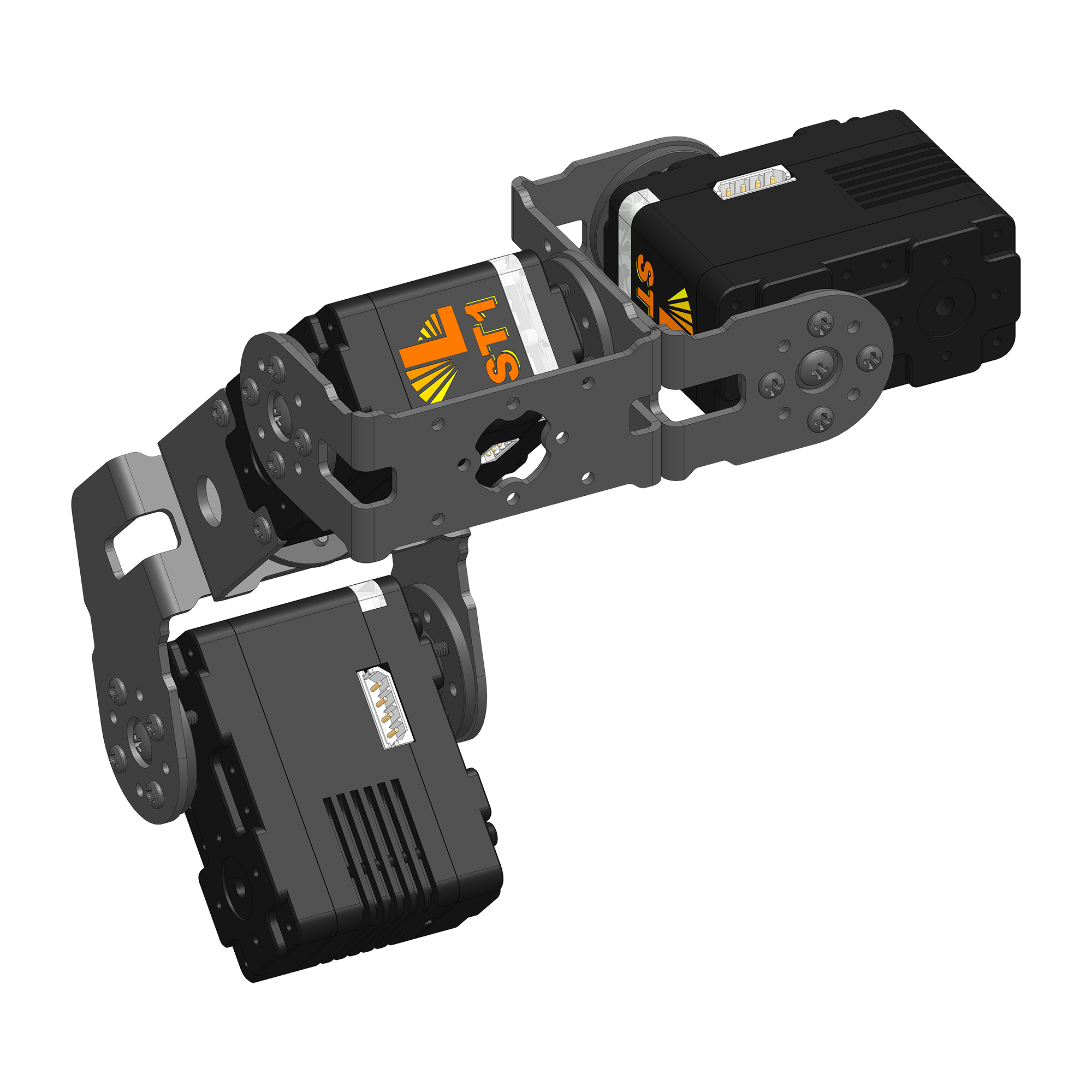

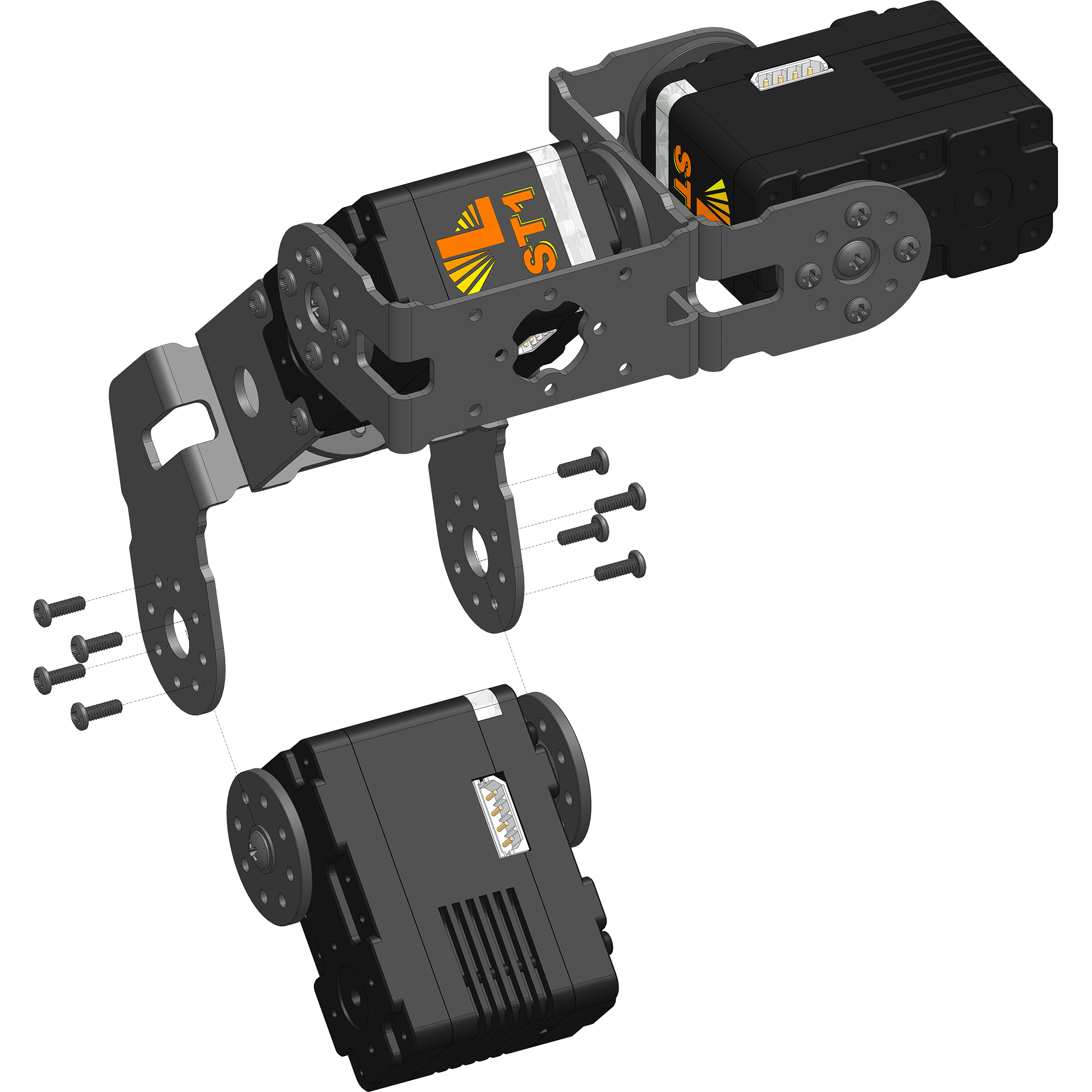

Right Front Leg - Assembly D

Step 4/5

1x LSS-ST1

LSS-ST1 ID-23

8x PHS-02

2-56 x 1/4"

Right Rear Leg - Assembly E

Step 5/6

1x mechDOG-Foot

Foot Support

1x mechDOG-Sock

Flexible Sock

2x PHS-20

M3 x 8mm

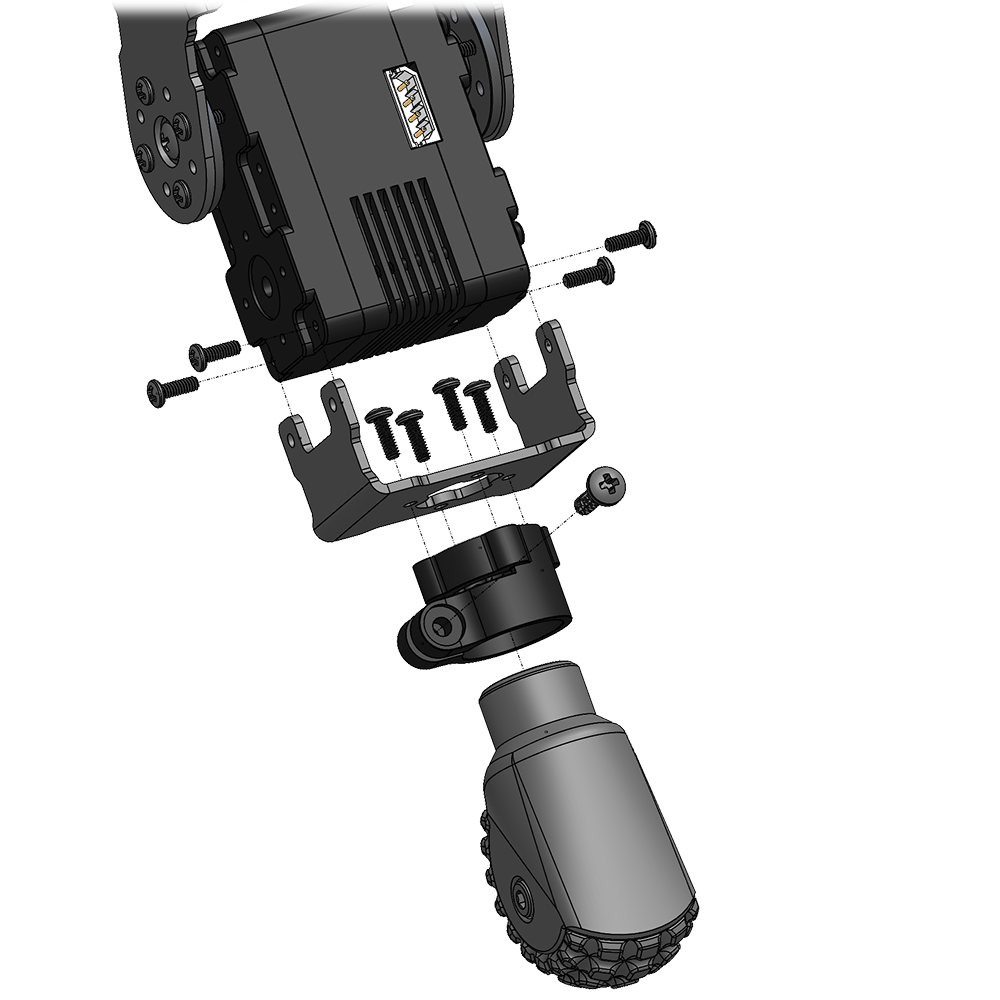

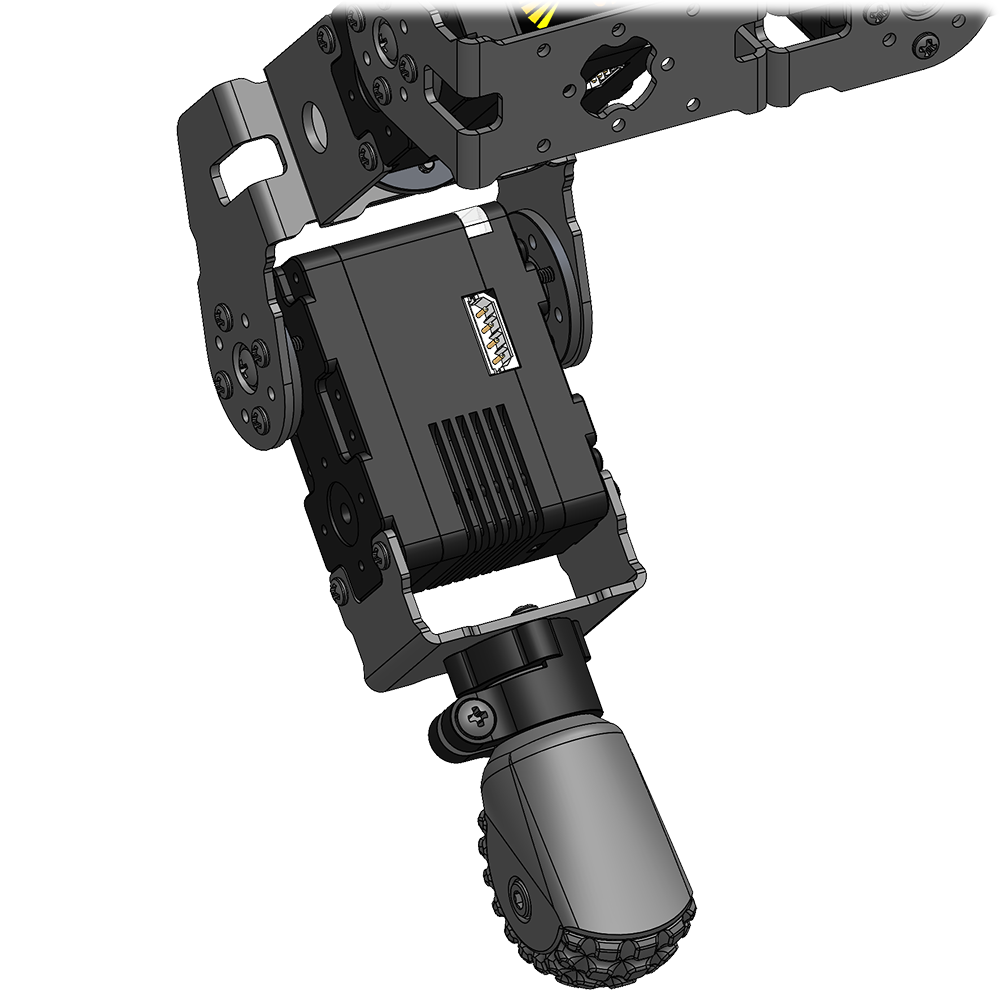

Right Front Leg - Assembly F

Step 6/6

1x - ASB-28

LSS Single Wide

1x HUB-22

16mm SES Clamp

8x PHS-02

2-56 x 1/4"

1x PHS-16

M3 x 10mm

Right Front Leg

Assembly E

SES V2 - mechDOG Right Front Leg
