IMPORTANT : Gears Update

This guide shows an updated gear system for the gripper, if you happen to have the previous aluminum gears version please follow this guide instead.
5 DoF Gripper - Legacy

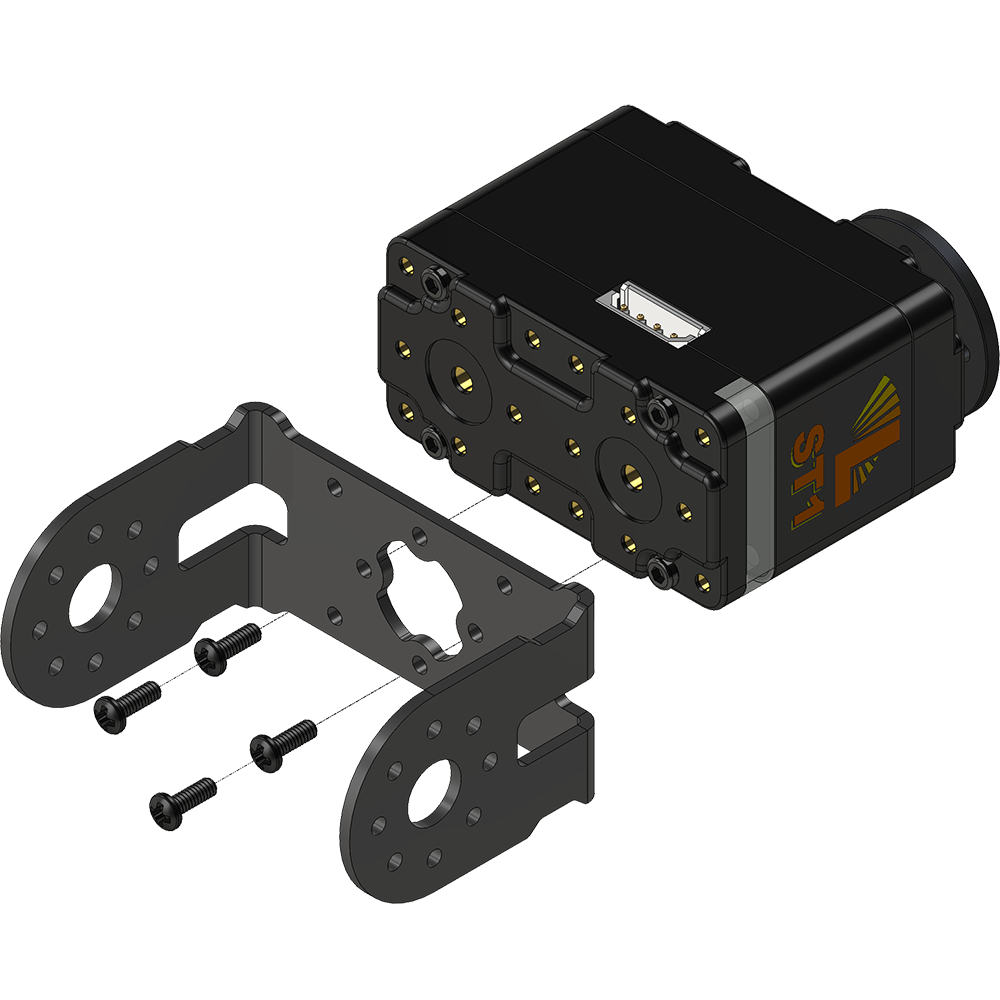

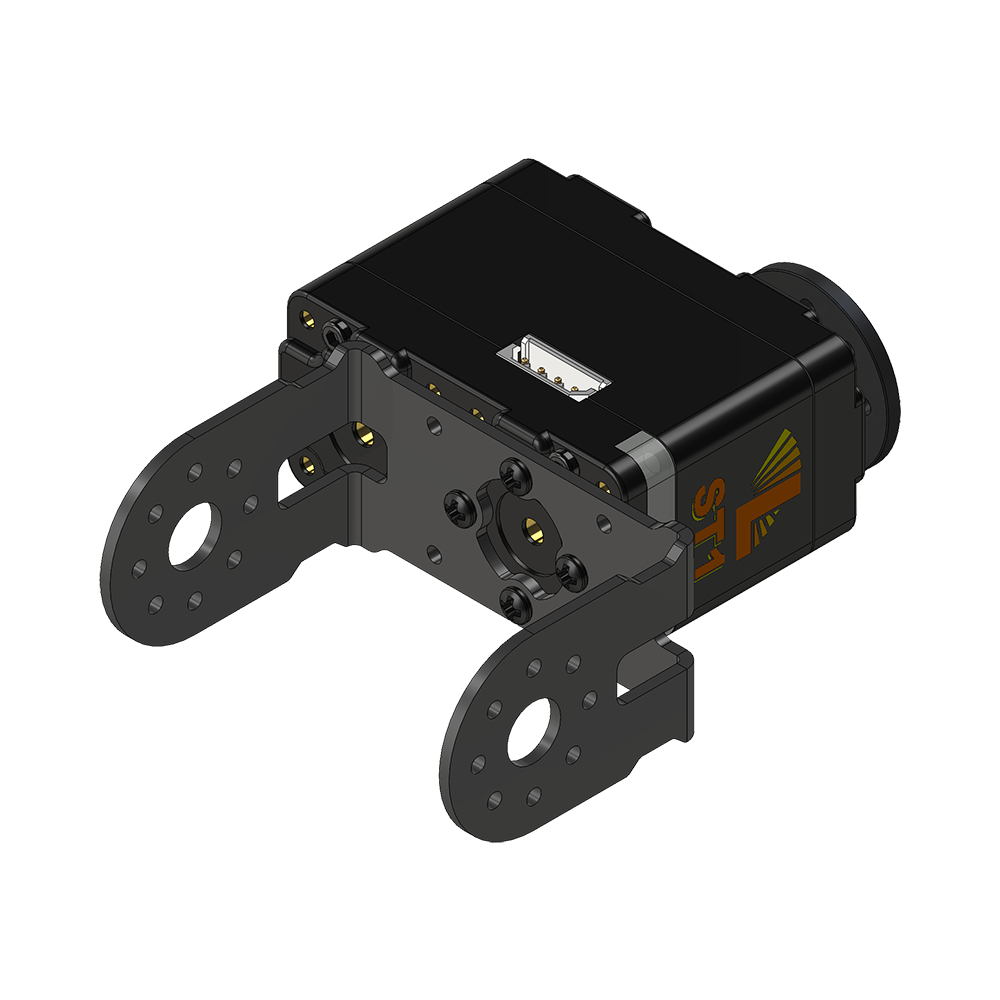

Gripper - Assembly A
Step 1/6
1x LSS-ST1
LSS Standard
1x ASB-39
Short C V2
4x PHS-02
2-56 x 1/4"

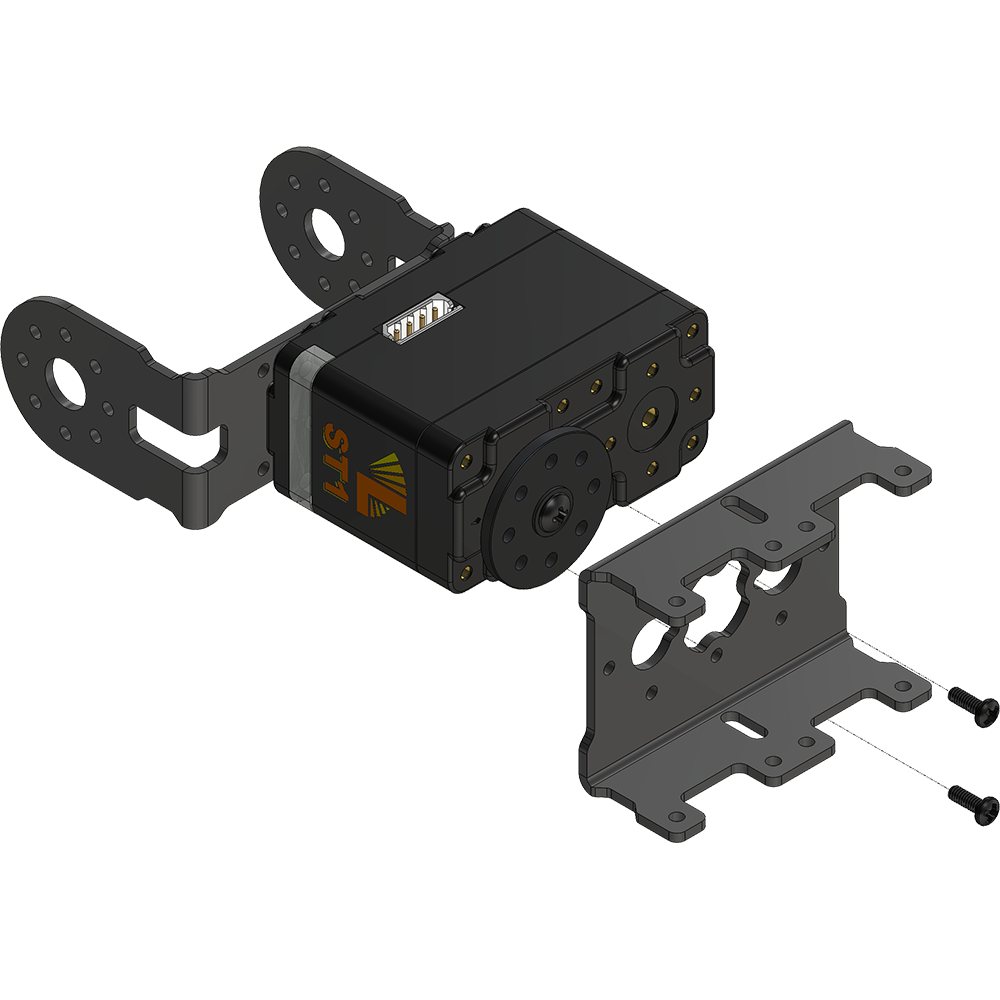

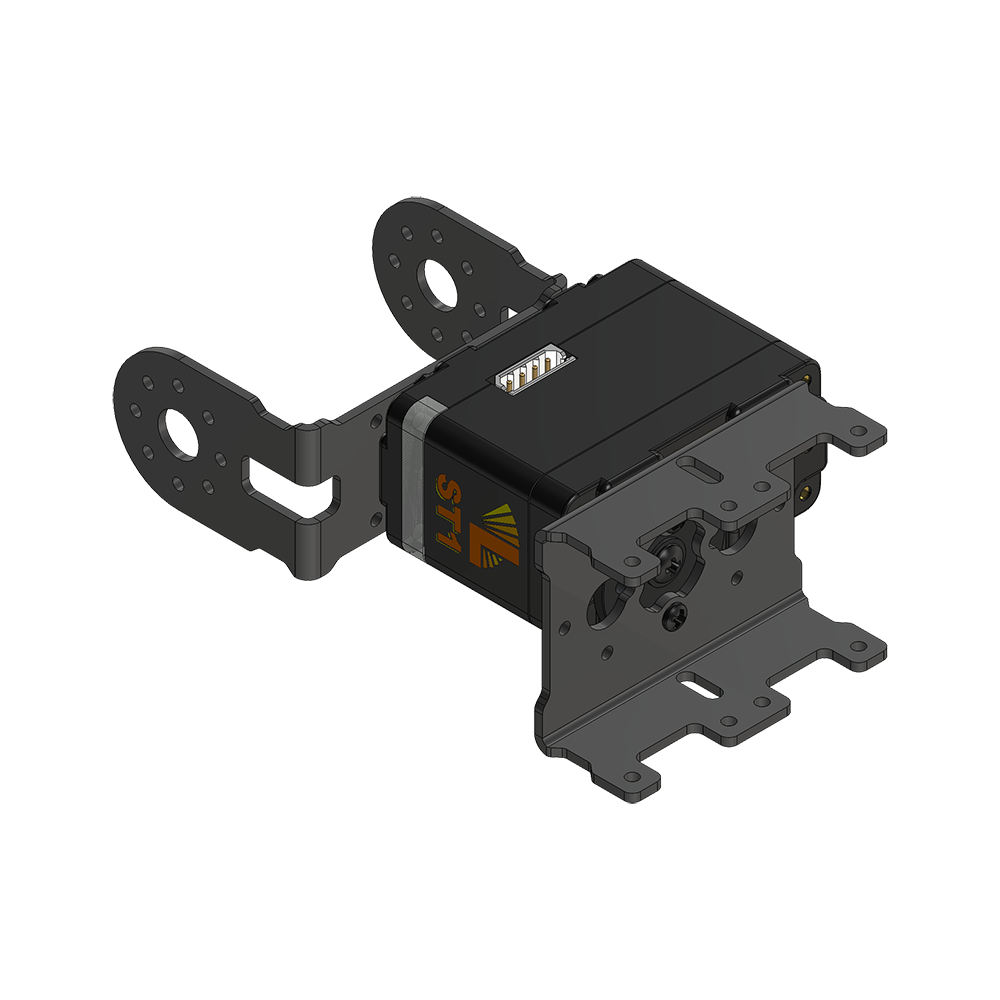

Gripper - Assembly B
Step 2/6
1x LSS-ST1
LSS Standard
1x ASB-30
LSS Double wide
8x PHS-02
2-56 x 1/4"
LSS-C-150
150mm LSS Cable




Comments:Cable is only displayed in this step and will be ignored until final assembly.

Gripper - Assembly C
Step 3/6
Gripper
Assembly B










Comments:Remove the idler horn assembly and mount it beside the driving horn.

Gripper - Assembly D
Step 4/6
Gripper
Assembly C
2x SES-32T
32T Gear
2x ASB-35
Gripper Main
4x PHS-02
2-56 x 1/4"




Comments:Ensure the two dots are in sync.

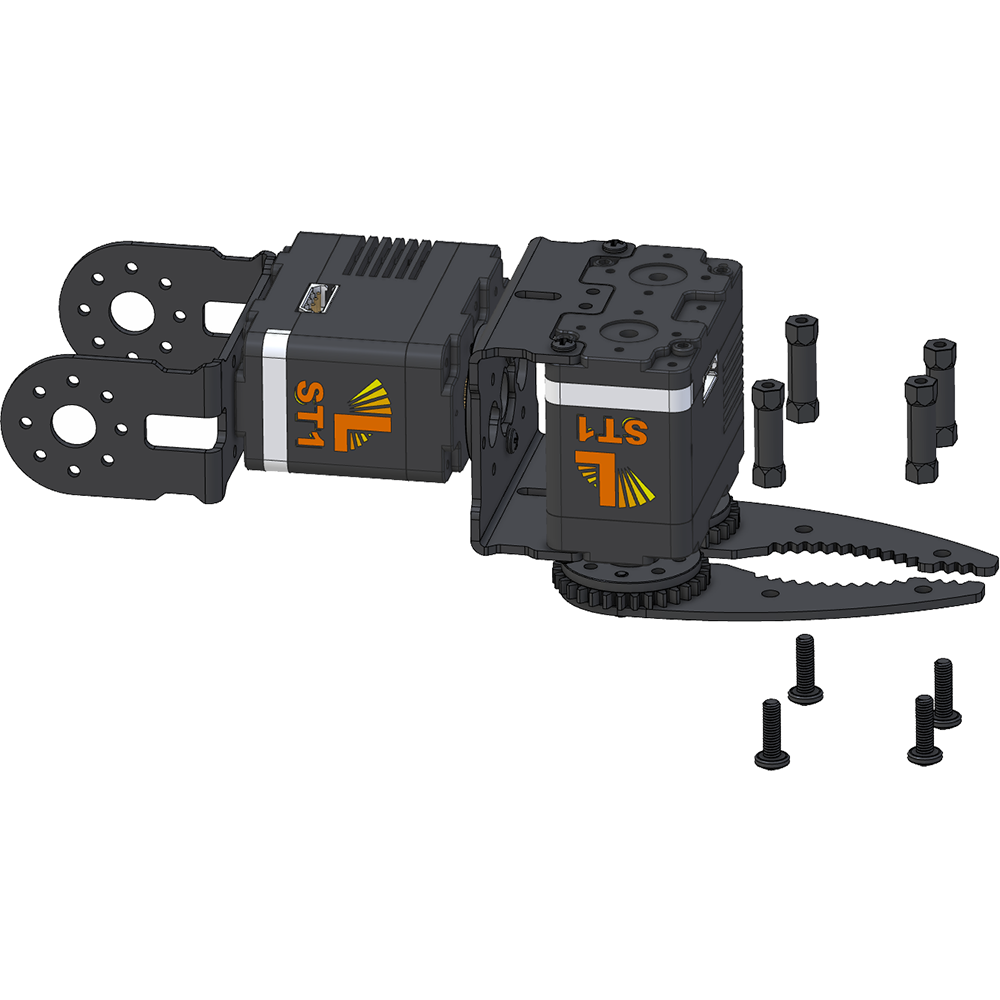

Gripper - Assembly E
Step 5/6
Gripper
Assembly D
4x AHS-20
M3 x 18mm Standoff
4x PHS-16
M3 x 10mm






Gripper - Assembly F
Step 6/6
Gripper
Assembly E
2x ASB-36
Gripper Secondary
4x ASB-42
Foam Insert
4x PHS-16
M3 x 10mm
