05 - Distance Sensor Mount

Last modified by Eric Nantel on 2024/07/03 09:35

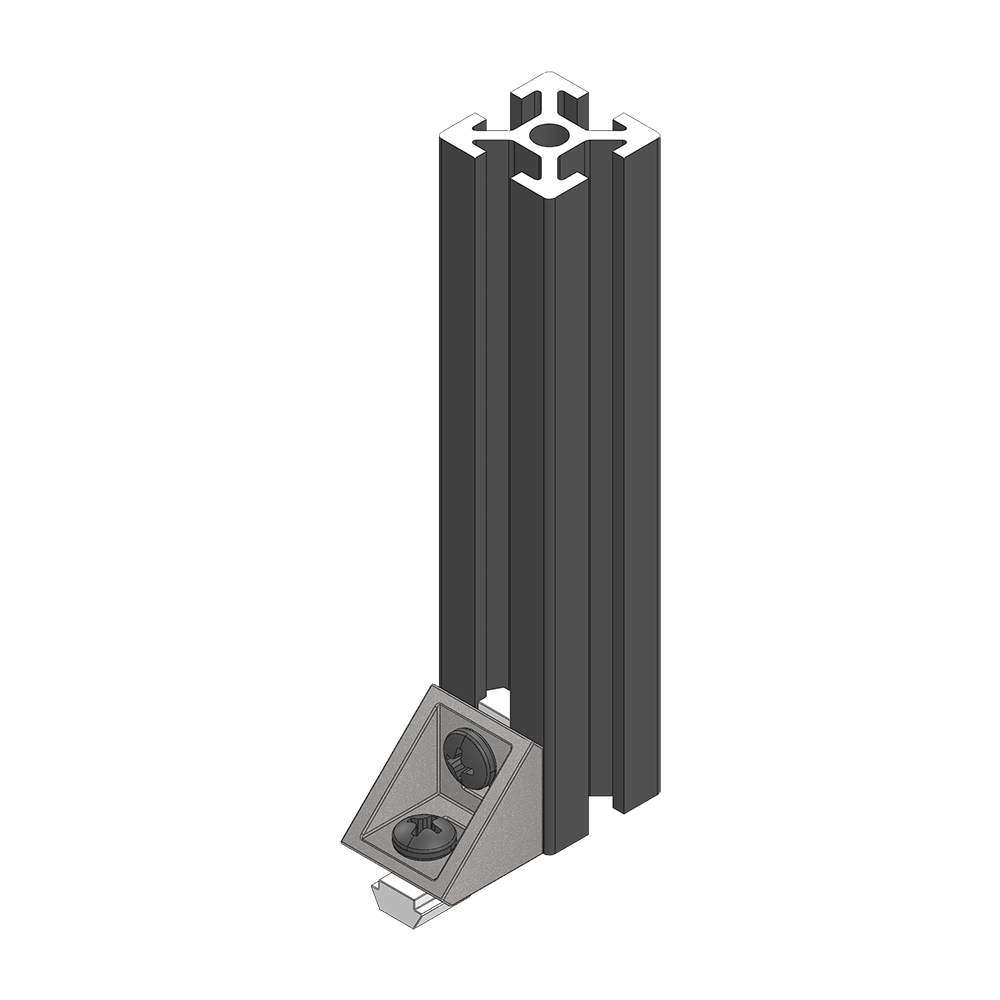

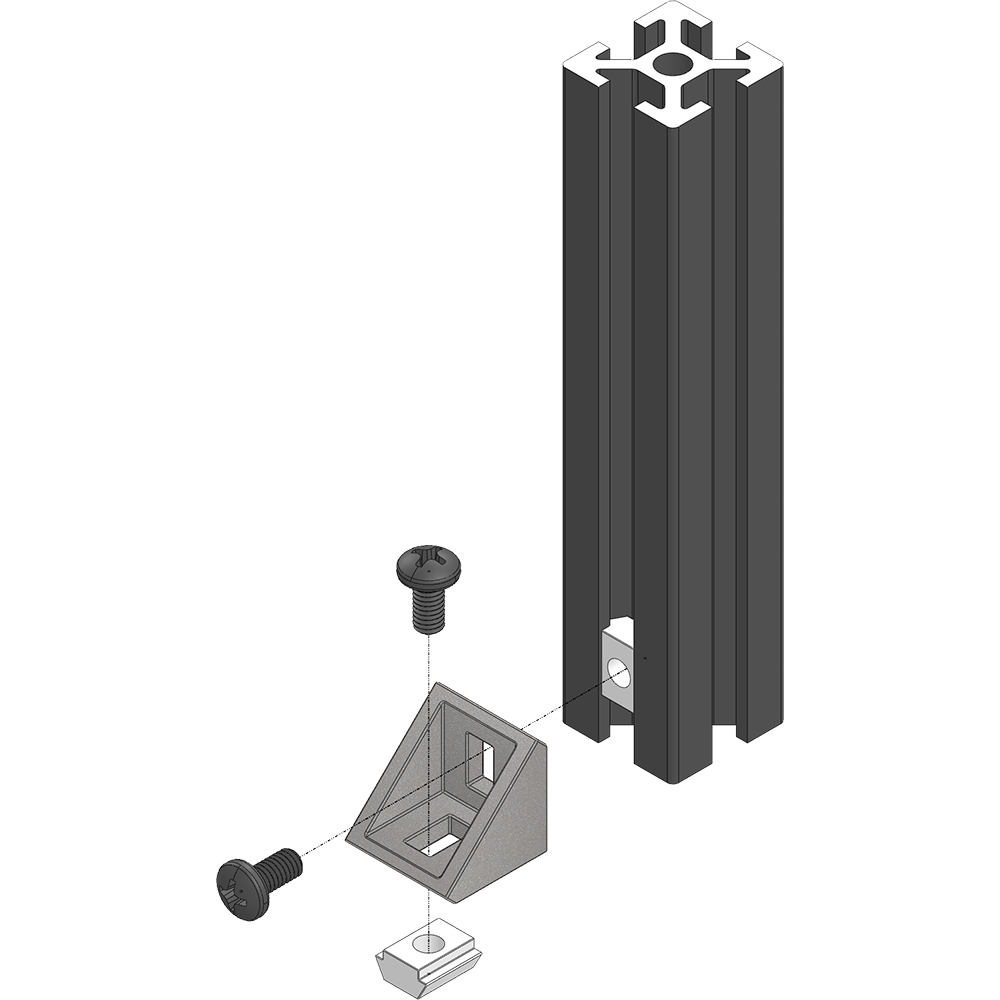

Distance Sensor - Assembly A
Step 1/4
1x AE-20-100
20x20x100mm
1x AE-90DEG-C
Corner Connector
2x TNUT-M4
M4 T-Nut
2x PHS-23
M4 x 8mm




Comments:Make sure the corner sit flush to the extrusion and do not fully tight the T-Nut that hold nothing for now.

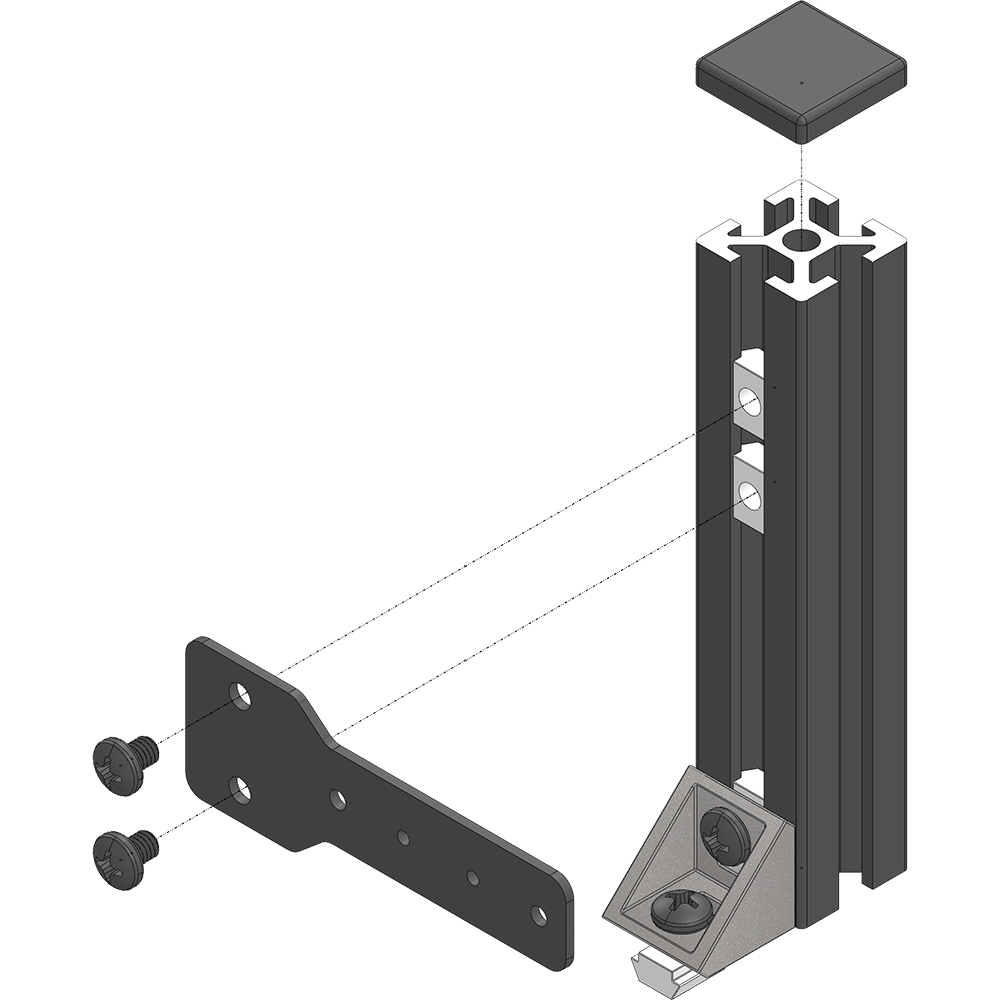

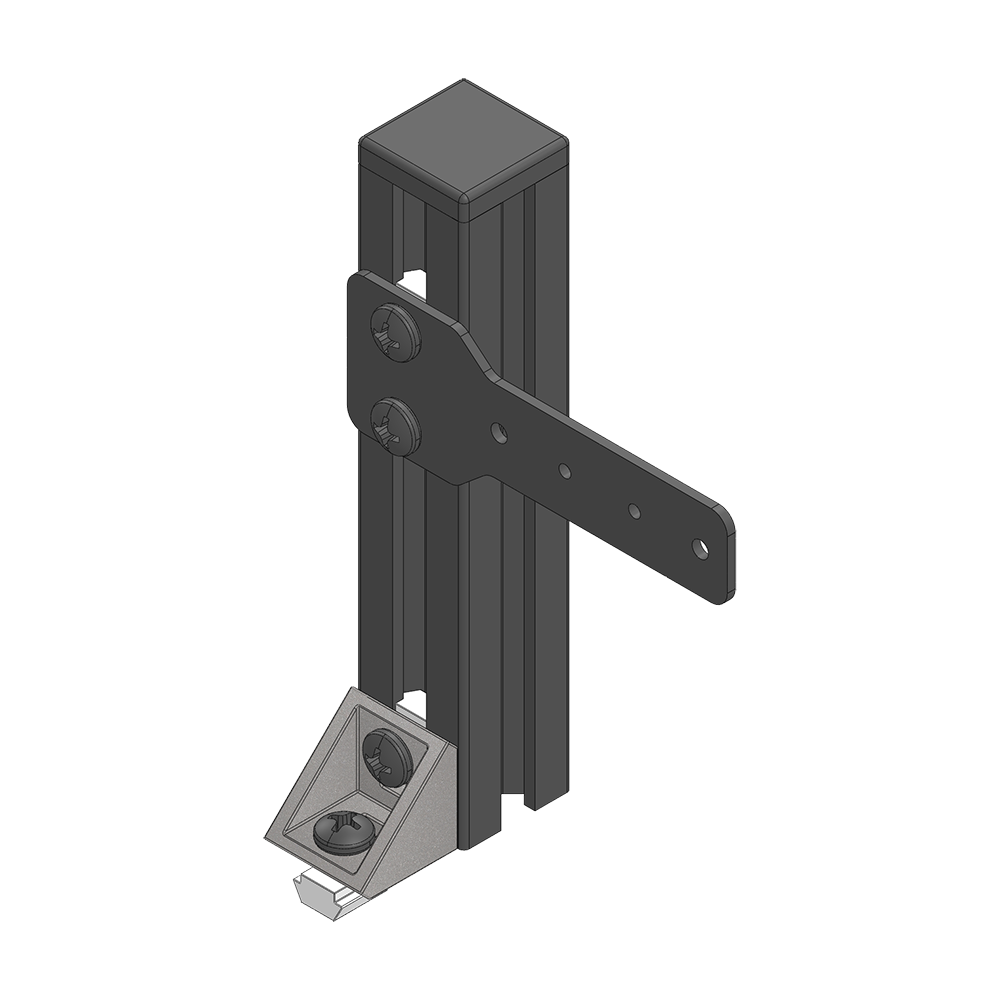

Distance Sensor - Assembly B
Step 2/4
1x CONV-SP
Color Sensor Plate
1x AE-20-CAP
Plastic Cap
2x TNUT-M4
M4 T-Nut
2x PHS-27
M4 x 5mm

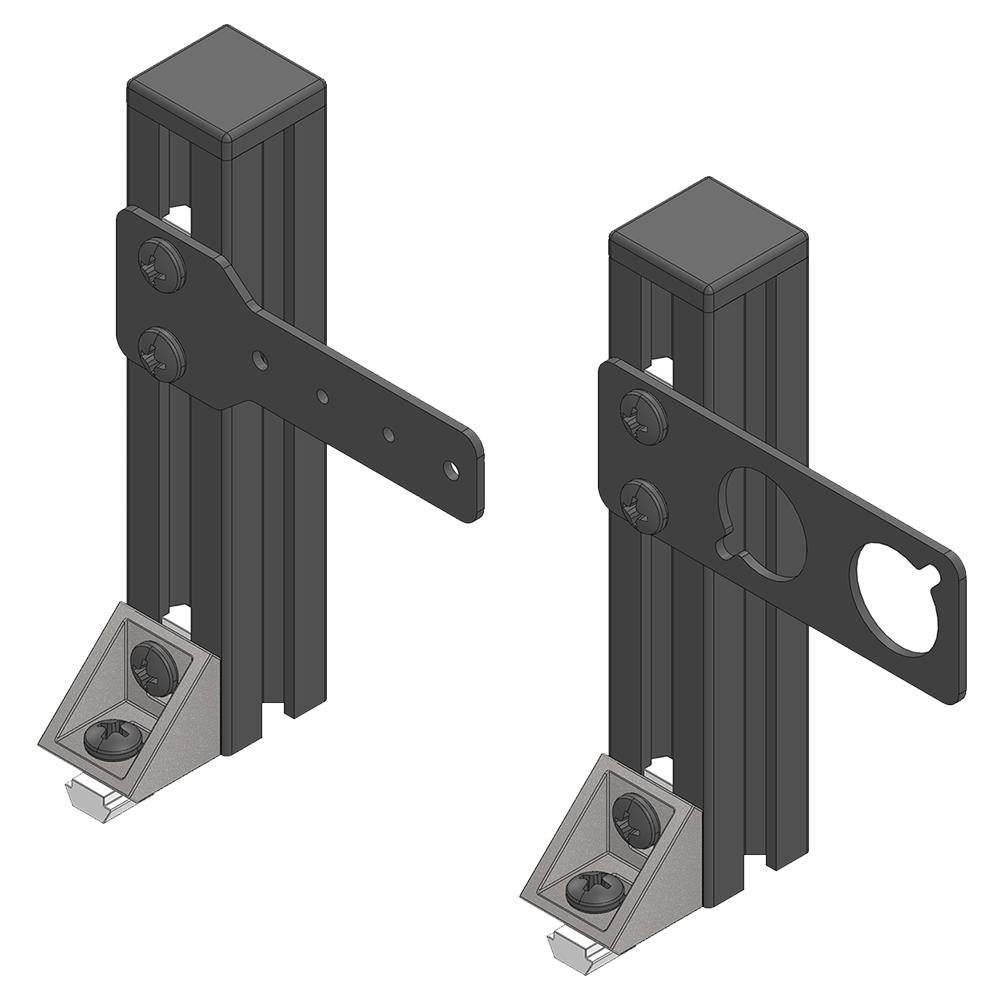

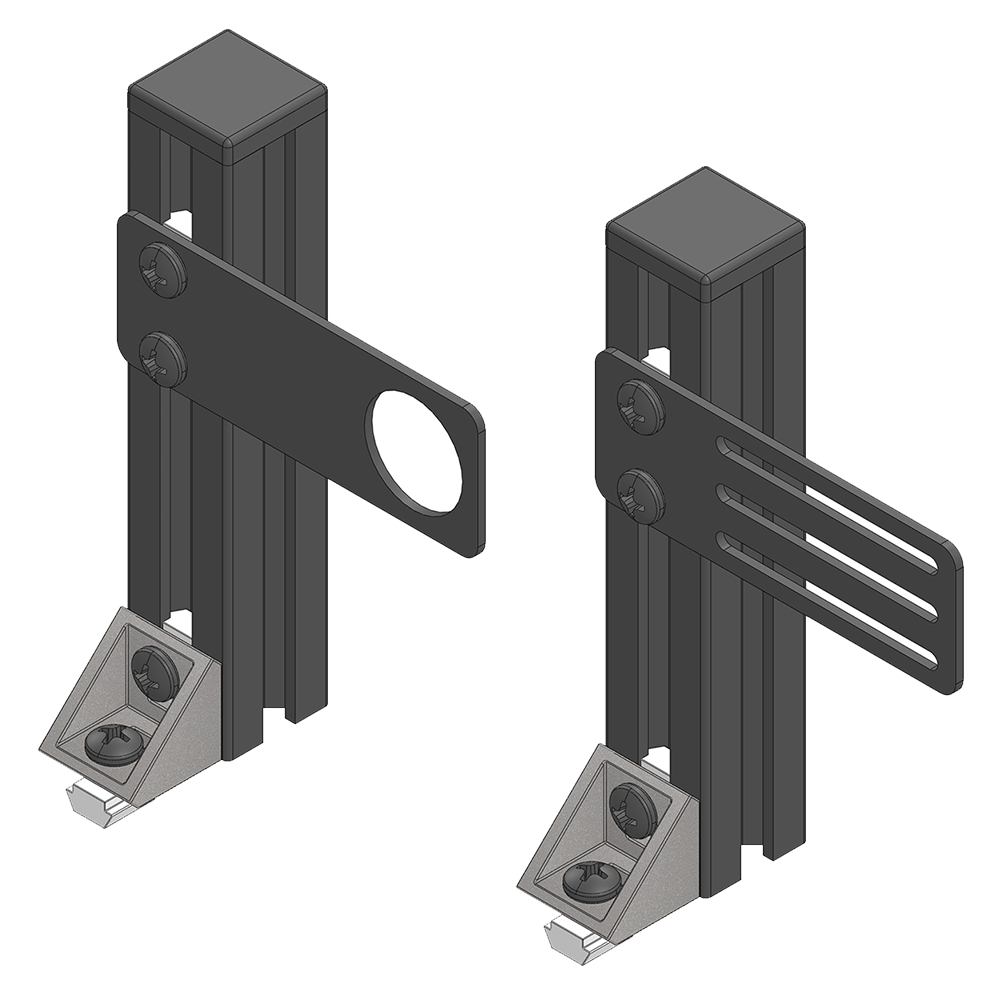

Sensor Plate Options
Optional
1x CONV-SP
Sharp Plate
1x CONV-PG
PING Plate
1x CONV-R18
18mm Round Plate
1x CONV-DIY
DIY Plate

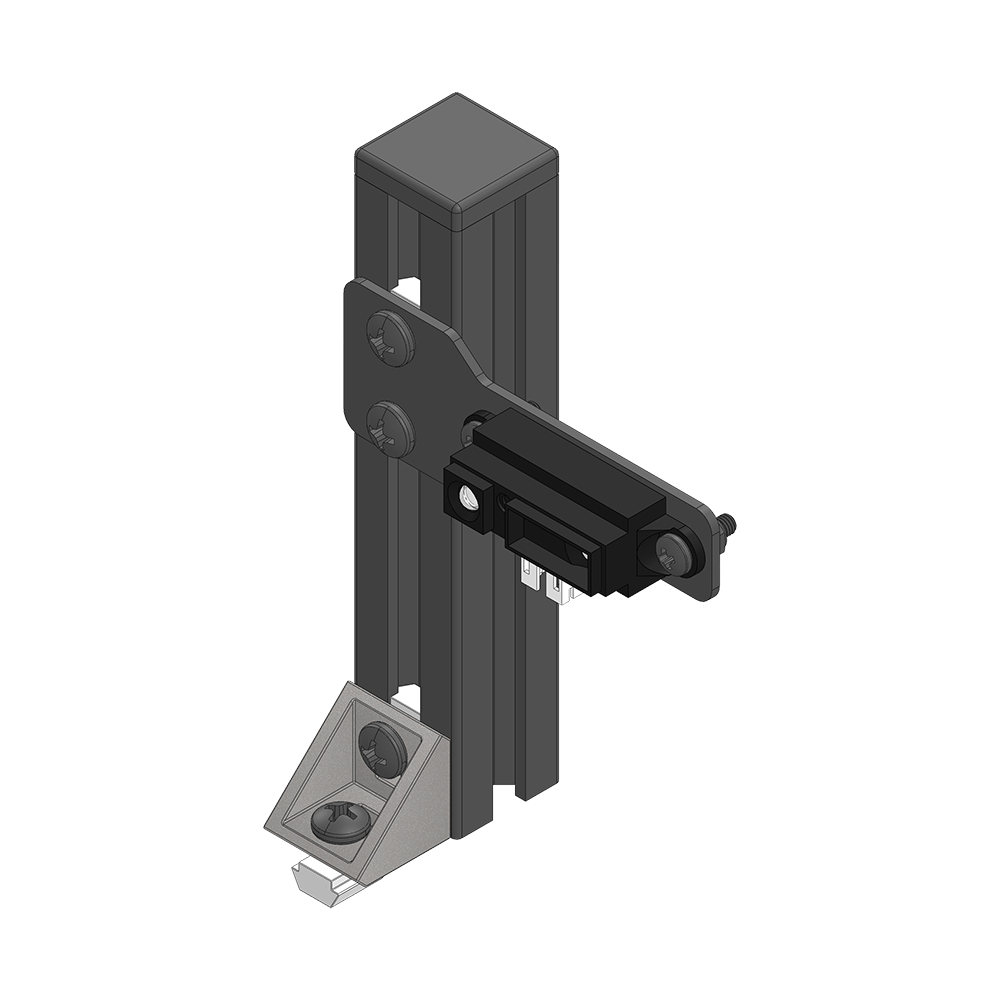

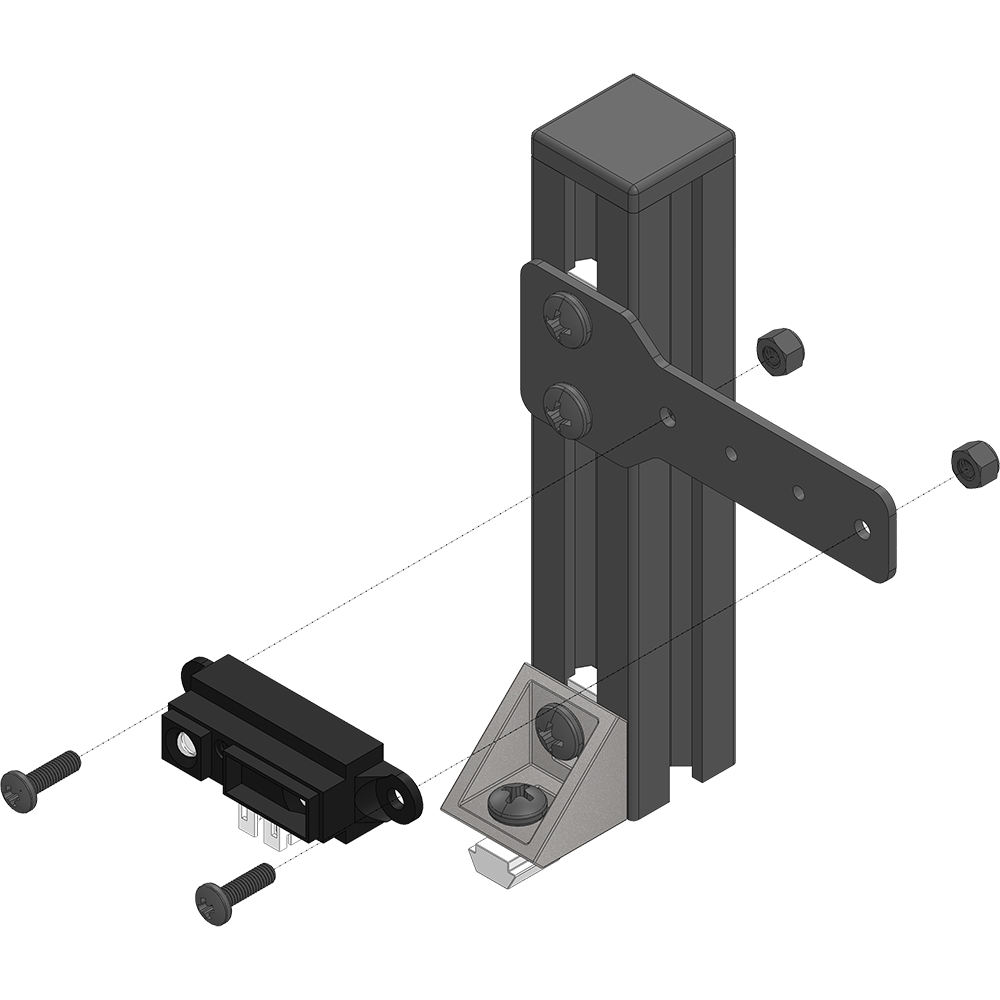

Distance Sensor - Assembly C
Step 3/4
1x Sharp
Sharp IR Sensor
2x PHS-16
M3 x 10mm
2x SLN-03
M3 Locknut

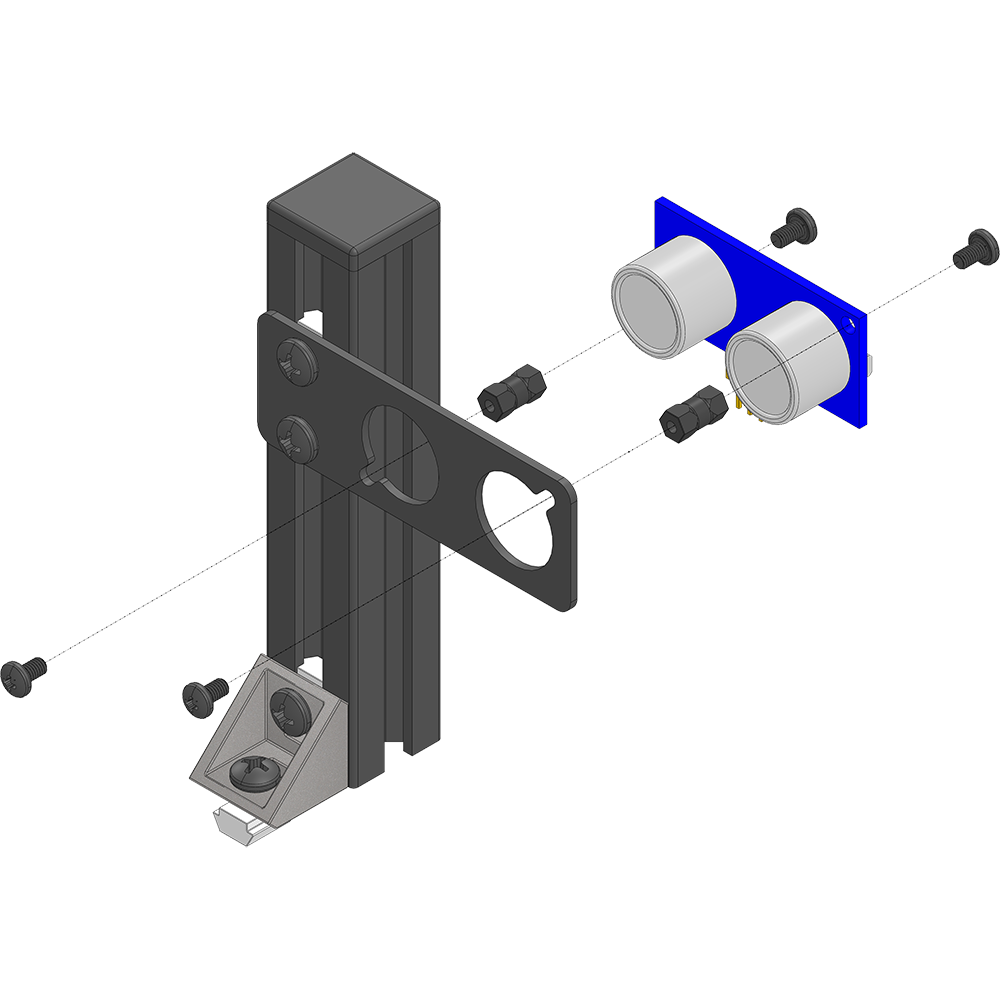

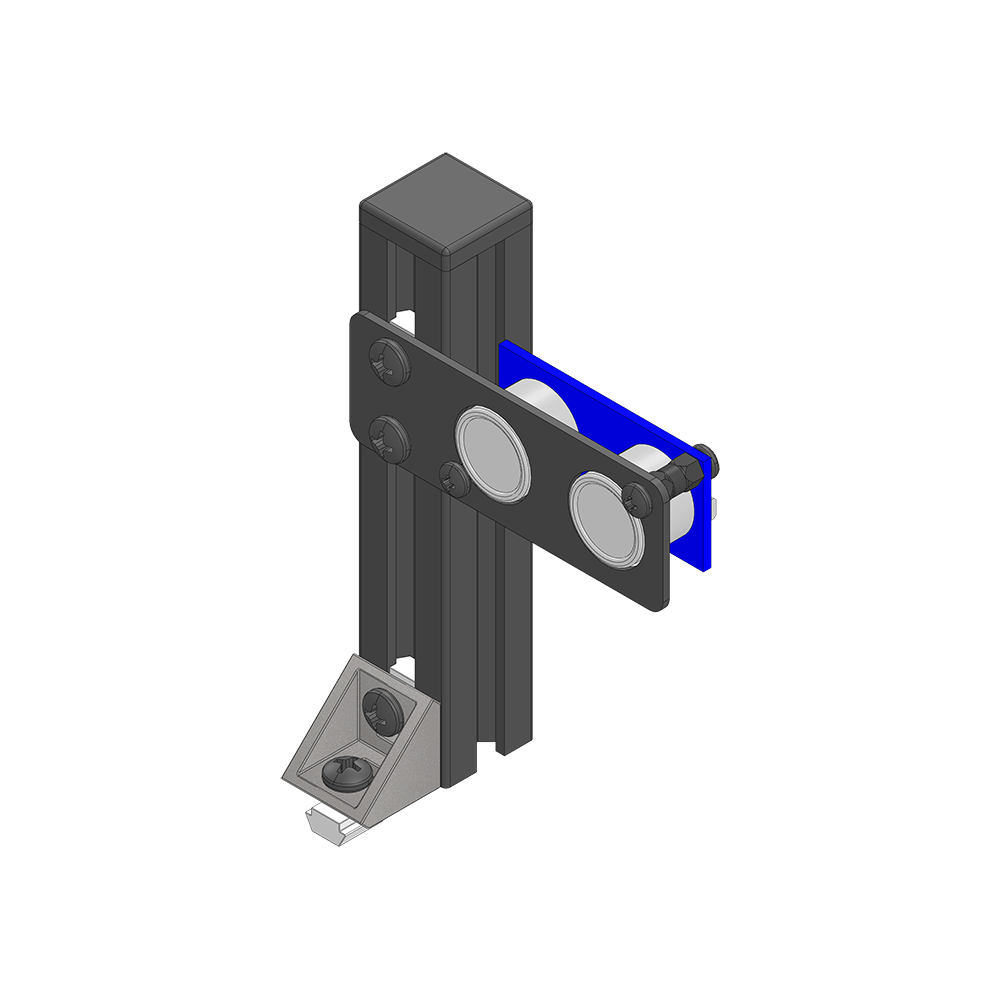

PING Ultrasonic Sensor
Optional
1x 28015
PING Ultrasonic
2x AHS-22-BA
M3 x 10mm
4x PHS-24
M3 x 5mm

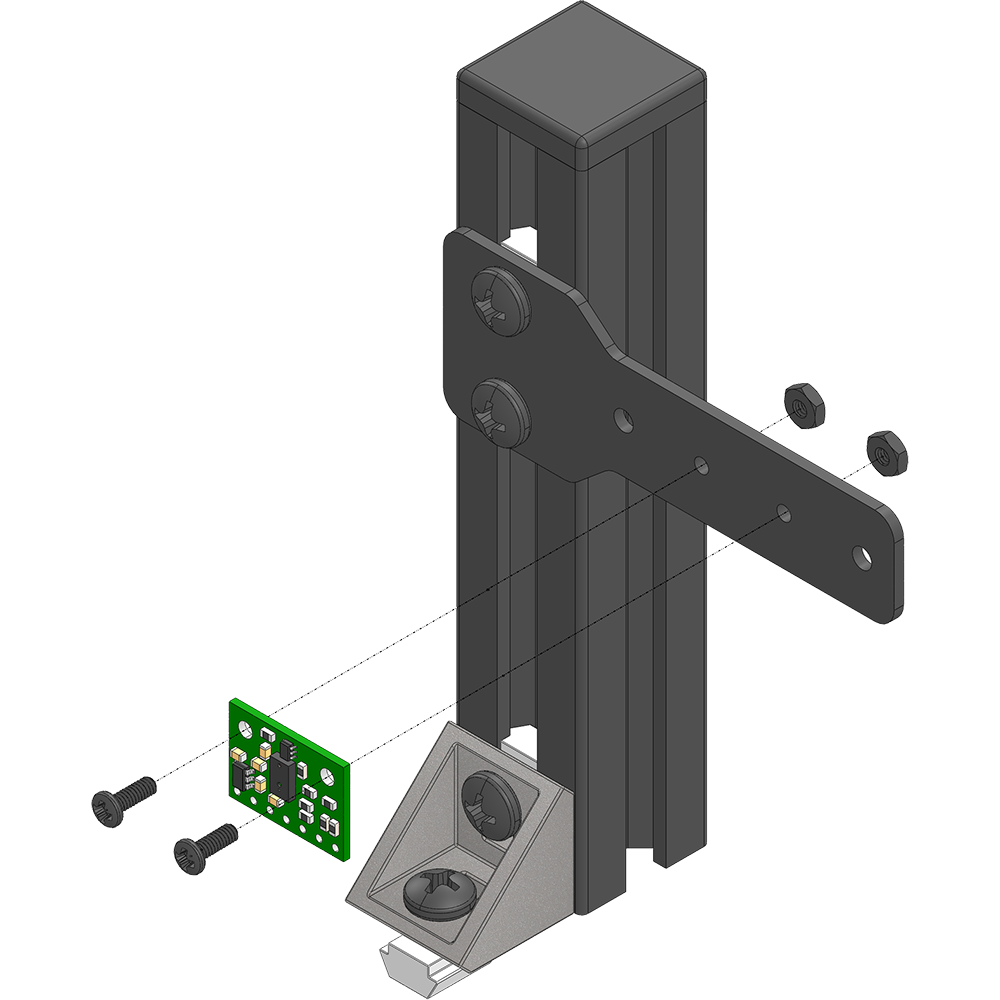

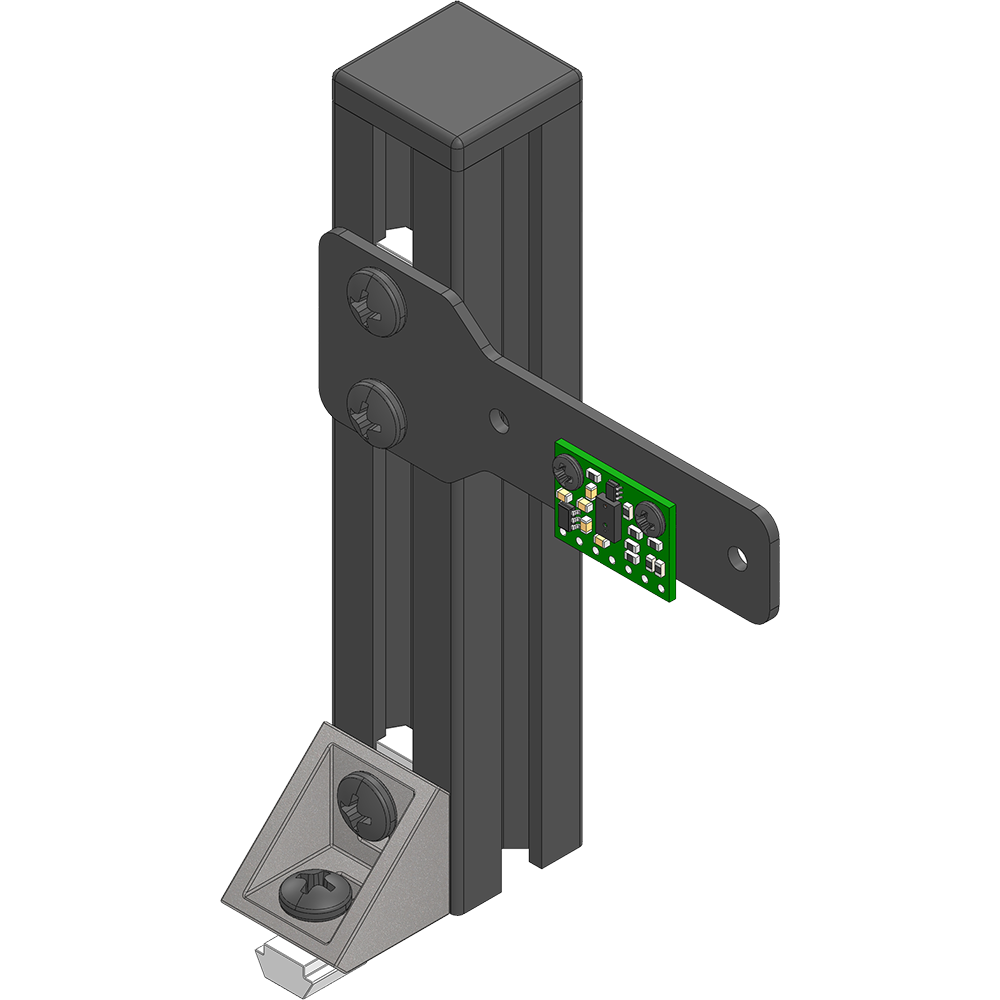

Pololu ToF Range Finder
Optional
1x 2489
Pololu ToL Sensor
2x PHS-02
2-56 x 1/4
2x SN-02
2-56 Nut

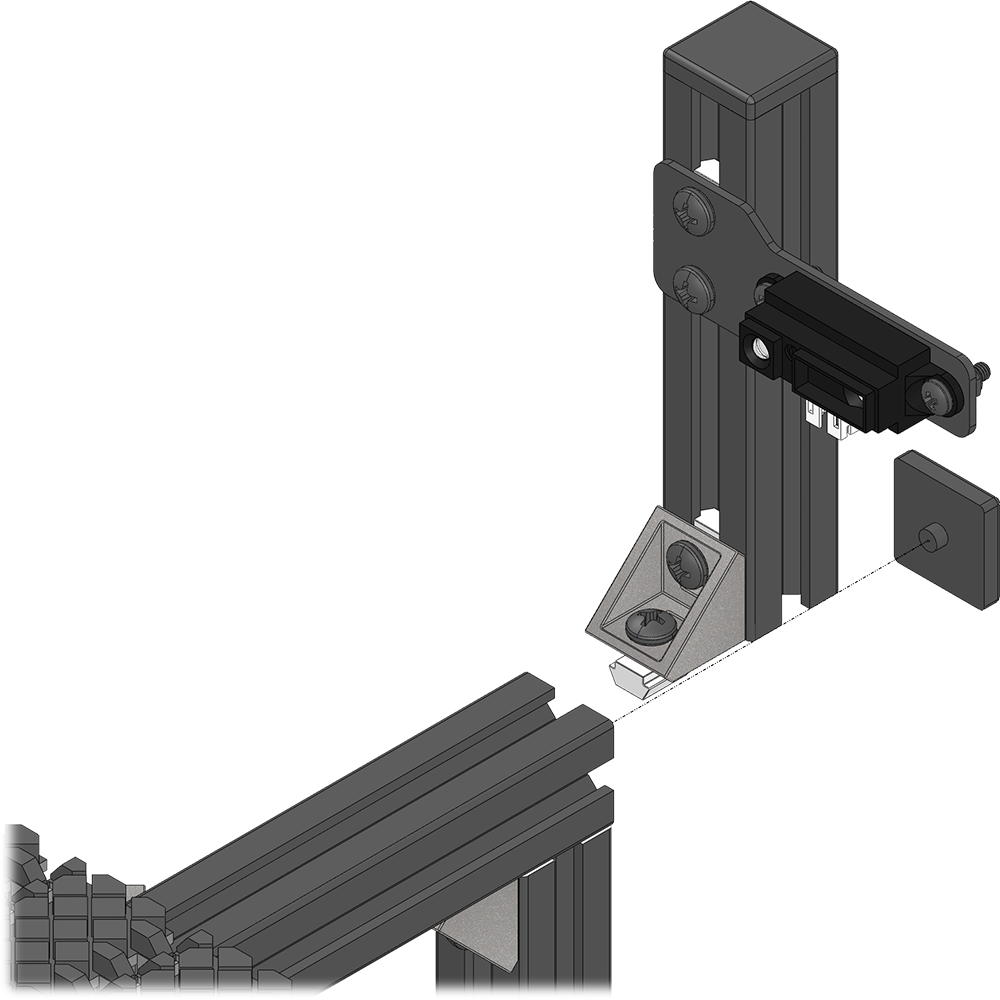

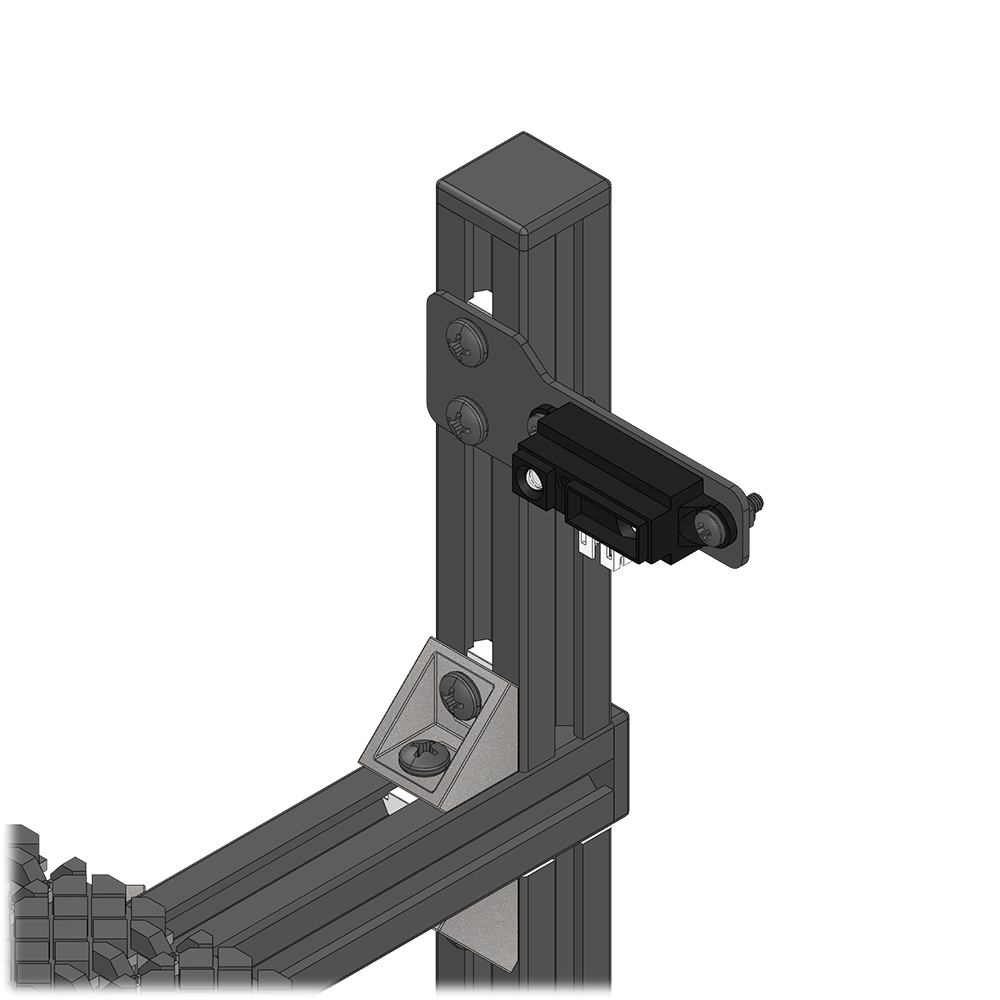

Distance Sensor - Assembly D
Step 4/4
Conveyor HD
Assembly










Comments:Adjust the position and tighten the screws.
